The Hard Rocker Pro tremolo is a guitar bridge developed and manufactured for Ibanez. It debuted in 1983.

The Hard Rocker Pro is a single locking synchronized tremolo. It is a dual point tremolo which pivots against a pair of studs mounted into the top of the guitar. Rather than employing a more typical knife-edge design, the pivot points are rounded. This design is meant to reduce friction wear and provide smoother rocking action.

The Hard Rocker Pro bridge consists of a cast metal baseplate below which is screwed a cast metal block. A variable number of springs (typically 2 to 4) are attached to this block and then to a claw mounted in the rear of the guitar. The position of the claw is adjustable to allow the tension of the springs to balance the tension of the strings.

Hard Rocker Pro chrome
Hard Rocker Pro in chrome Enlarge sprite

Resting on the baseplate are a set of six individual saddles. These are retained by means of a screw running through the back of the baseplate. This screw can be adjusted to set the intonation by moving the saddle fore and aft. The height of the entire tremolo can by set by raising or lowering the height of the studs; this allows the tremolo to sit on the guitar top or to "float" above it. Additionally the height of each string can be adjusted by raising or lowering a pair of grub screws located in the leading edge of each saddle.

The strings are retained by hooking the ball end in a slot in the leading edge of the bridge and then running the string through the saddle. Each string is clamped down at the saddle with an individual string clamp. These clamps locks the strings into the saddles and contribute to increased tuning stability. These string clamps are the primary difference between this bridge and the Hard Rocker. Both bridges employ a threaded arm.

The Hard Rocker Pro was discontinued on most models in 1984 in favor of the Powerocker Special tremolo, but it made a final appearance in 1985 on the Axstar models.

Gallery

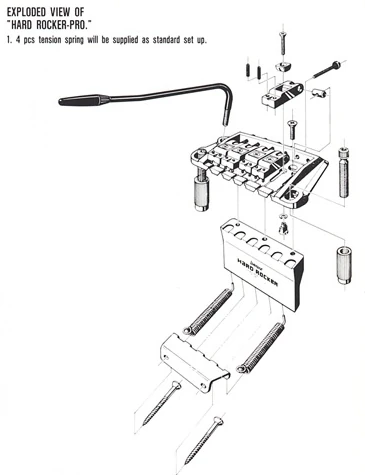

Hard Rocker Pro exploded
Exploded diagram

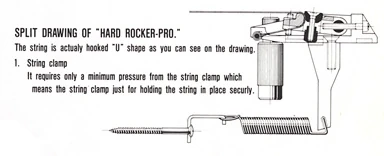

Hard Rocker Pro cutaway
Side view cutaway
Hard Rocker height adjustment
Height adjustment
Hard Rocker Pro description
Description

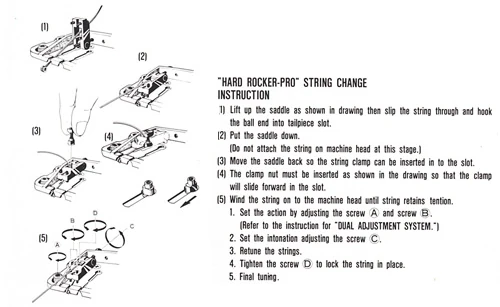

Hard Rocker Pro string change
String change process
Hard Rocker Pro side view
Multi-exposure showing range of motion
