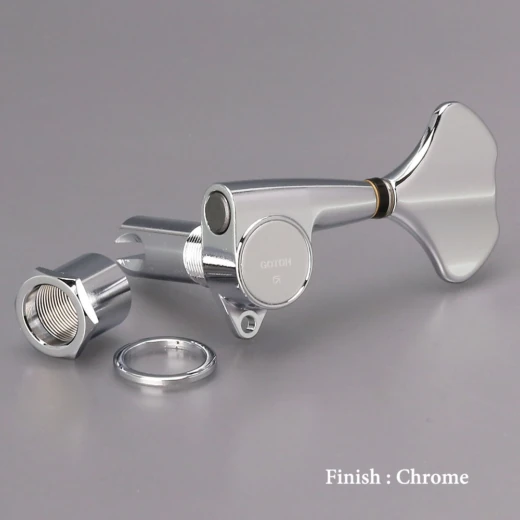

The Gotoh GB707 is a style of machine head (a.k.a. tuning peg) installed on a number of Ibanez bass models. It is manufactured by the G-GOTOH Gut Co., Ltd. in Japan. The Gotoh GB70 is a predecessor model which is virtually indistinguishable.
The GB707 offers a 1:20 gear ratio. Versions are available for four, five or six string basses and for both inline and 2-on-a-side (L2+R2) or other headstock configurations.
Ibanez models[]
These machine heads are used on a variety of mostly Signature series and Prestige models. For an inventory of models using the GB707, see this list.
Similar tuning machines[]
Ibanez also makes an in-house die-cast tuner that is visually similar to the GB707.
Images[]
Additional images
Dimensions
Sources[]
- 2007 Gotoh catalog (page 20)
- GB707 product page, G-GOTOH Gut Co., archived march 2021
