GXR370 CRB

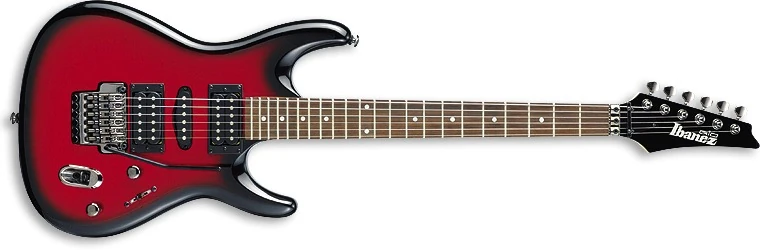

GXR370 Crimson Burst (more images) Red copyright sprite

The GXR370 is an Ergodyne series solid body electric guitar model introduced by Ibanez in 2005. It was made in Indonesia as part of the affordable GIO line.

The GXR370 is a bit of an amalgamation of the classic Radius model and the Ergodyne series. The GXR370 is the only GXR model ever made. It features a basswood body bolted to a maple neck with a 22-fret rosewood fingerboard with white dot position markers. Components include Ibanez pickups with a pair of humbuckers flanking a single-coil and an Edge III double locking tremolo bridge.

The GXR370 was produced only in 2005.

Specifications

Specifications for GXR370
Model name: GXR370
Year(s) produced: 2005
Sold in: Asia (excluding Japan) / Central & South America
Made in: Indonesia
Finish(es): Candy Apple (CA) / Crimson Burst (CRB) / Steel Blue Burst (SBB) / Silver Burst (SVB)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Bolt-on
Bridge:
Edge III tremolo
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
GXR
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Locking (42mm)
Machine heads:
Ibanez die-cast
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez STD-H2 (H)
Middle pickup:
Ibanez STD-S4 (S)
Neck pickup:
Ibanez STD-H1 (H)
Controls:
Master volume / master tone / 5-way lever

Images

Additional finishes/ details

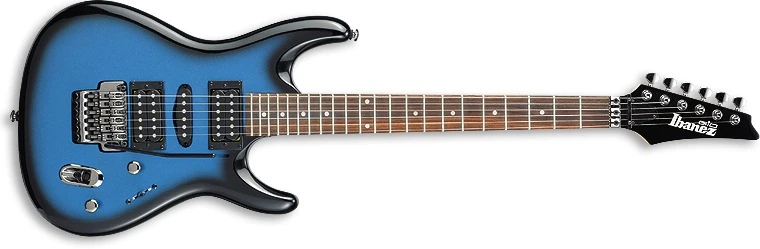

GXR370 SBB
Steel Blue Burst

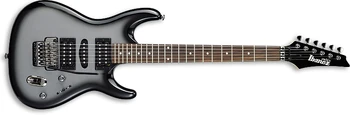

GXR370 SVB
Silver Burst
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
Wimage An image for this article is missing!
An image of the GXR370 Candy Apple is wanted for this article. You can help by finding, uploading and adding it!
