GWB1005

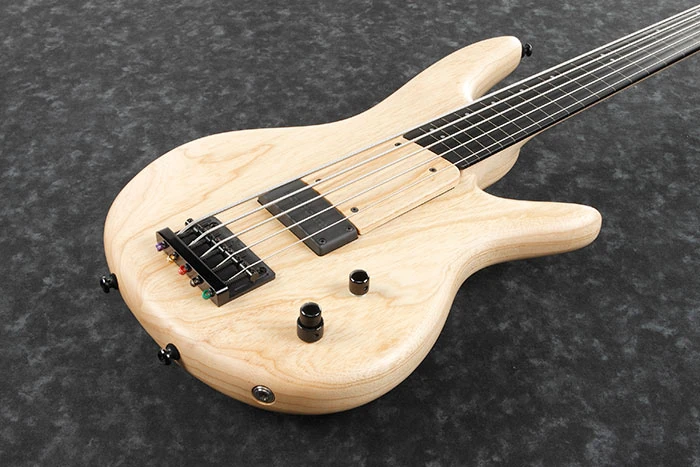

GWB1005 Natural Flat

The GWB1005 is a five string solid body electric bass model introduced by Ibanez for 2006, replacing the similar, South Korean-made GWB105. It is a signature model for American jazz fusion bassist Gary Willis. It is produced in Japan by FujiGen.

The GWB1005 features an Soundgear series double-cutaway swamp ash body bolted to a maple neck with a fretless ebony fingerboard with offset white dot position markers. Components include a custom Bartolini passive soapbar bass pickup with a Bartolini preamp with a two-band EQ, a standard bridge with 16.5mm string spacing, a removable finger rest/ramp, a plastic nut, and Gotoh tuners with custom Sure Grip buttons.

The GWB205 is a more affordable version of this bass which was made in Indonesia.

Specifications

Related content: Soundgear series | Gary Willis series | Signature series |

Specifications for GWB1005

Model name: GWB1005 Year(s) offered: 2006–2026 Sold in: Americas & Oceania / Asia & Africa / China 2018–2026 / Europe / Japan / USA 2006–2020 / USA & Canada 2021–2026 Made in: Japan Price: MSRP: ¥ 530,000 (2019) / ¥ 610,000 (2021)) / US$6,133.32 (2022) / ¥ 710,000 (2023–2025) / €4,799 (2024) / CA$7,449.99 (2025) / €5,265 (2025) / £6,505 (2025) / ¥ 750,000 pre-tax (2026) • SMAP: US$4,599.99 (2024) / CA$6,439.99 (2025) / €4,559 (2025) / £3,715 (2025) Finish(es): Natural Flat (NTF)
Body Body type: Solid body Body material: Swamp ash Neck joint: AANJ Bridge: STD5 fixed (16.5mm string spacing) Pickguard: Removable wood finger ramp/rest Knob style: Knurled metal dome w/ pointer Hardware color: Black	Neck Neck type: GWB Prestige Neck material: 3-piece maple Scale length: 864mm / 34" Fingerboard material: Ebony Fingerboard inlays: Offset white dot Nut: Black plastic (45mm) Machine heads: Gotoh GB707 w/ GWB Sure Grip buttons String gauge (factory): 2006–2021: .045/.065/.085/.105/.135 2022–2026: .045/.065/.085/.105/ .135 (D'Addario EXL165-5) Factory tuning: 1G,2D,3A,4E,5B	Electronics/ case Pickup configuration: S Bridge pickup: Bartolini GWB passive Electronics: Bartolini NTBT 2-band EQ w/EQ bypass switch Controls: Master volume w/ push-pull EQ bypass / Stacked bass boost-cut & treble boost-cut Battery: 9V Output jack: ¼" stereo barrel (side mounted) Included case: yes

About this table

Images

Additional details

Front of body

Rear of body

Controls layout

EQ frequency chart
