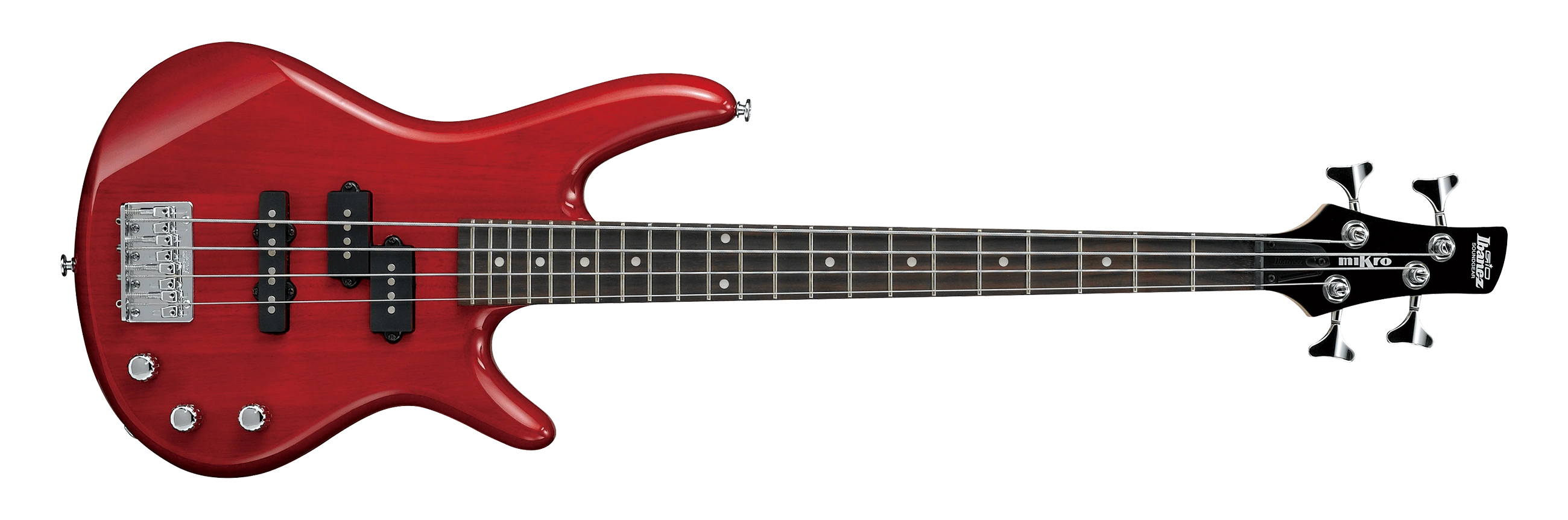

2020 GSRM20N TR 2Y 07
GSRM20N Transparent Red (more images) Red copyright sprite

The GSRM20N is a short scale Soundgear series solid body electric bass model introduced by Ibanez for 2020. It is produced in China as part of the entry level GIO line. It is offered only in China.

The GSRM20N features a double-cutaway poplar body bolted to a 28.6" scale maple neck with a 22-fret purpleheart fingerboard with white dot position markers. Components include a pair of Ibanez Standard pickups with a jazz pickup at the bridge and a precision pickup at the neck, a B10 bridge with 19mm string spacing, a plastic nut and Ibanez tuning machines.

The GSRM20 is a similar model offered in other markets. The GSRM20B is a similar model with black hardware. The GSRM20M is a similar model with a maple fretboard. The GSRM20L is a left-handed version. The GSRM25 is a similar five string model. The GSRM30 is a related model with a pair of jazz pickups.

Specifications

Specifications for GSRM20N
Year(s) produced: 2020
Sold in: China
Made in: China
Finish(es): Black (BK) / Transparent Red (TR)
Body
Body type:
Solid body
Body material:
Poplar
Neck joint:
AANJ
Bridge:
B10 fixed (19mm string spacing)
Knob style:
Plastic
Hardware color:
Chrome
Neck
Neck type:
GSRM4
Neck material:
1-piece maple
Scale length:
726mm / 28.6"
Fingerboard material:
Purpleheart
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Plastic (38mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
Ibanez Std. J (J) passive
Neck pickup:
Ibanez Std. P (P) passive
Controls:
Two volume / master tone
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E

Images

Additional finishes/ details

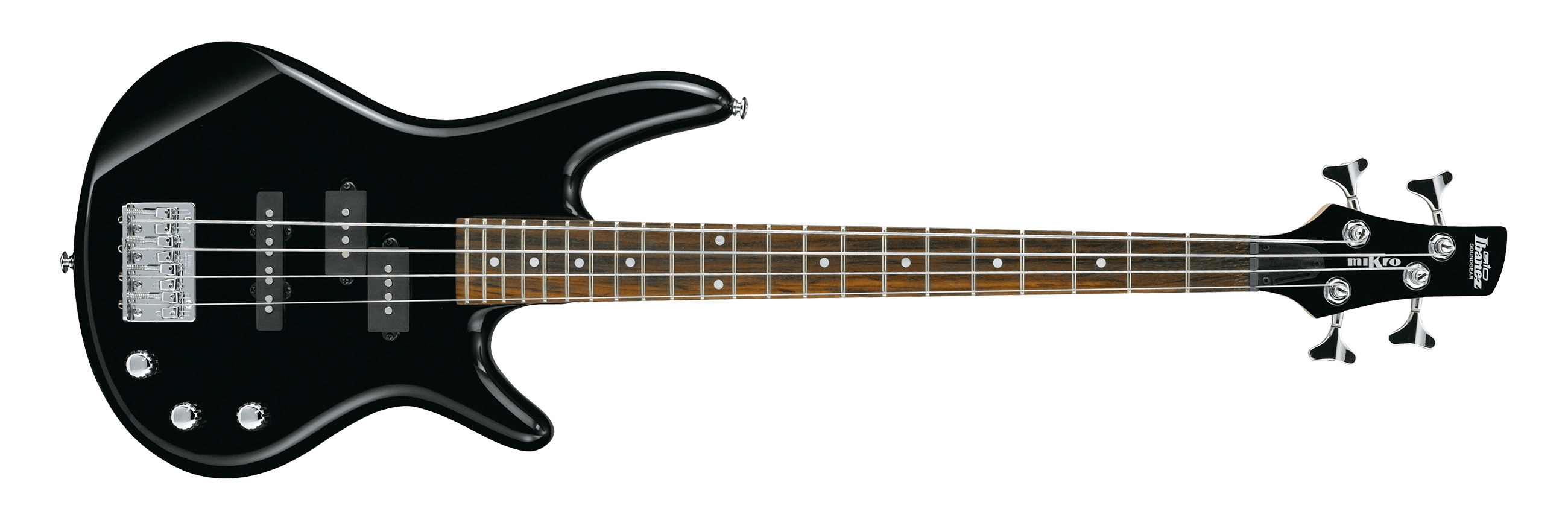

2020 GSRM20N BK 2Y 07
Black
Controls 2VT GSR
Controls layout
GSRM20 size comparison
Comparison between miKro and full-size bass
