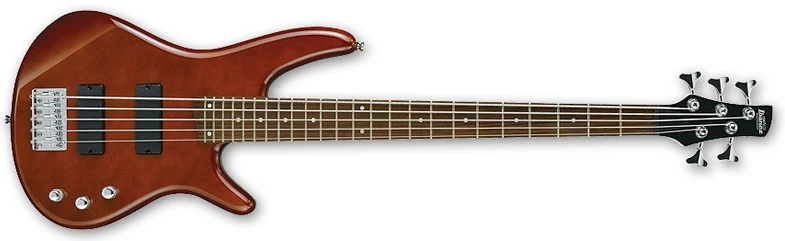

GSR395-WN
GSR395 Walnut Red copyright sprite

The GSR395 is a five string Soundgear series solid body electric bass model introduced by Ibanez in 2004. It was produced in China as part of the entry level GIO line.

The GSR395 features a double-cutaway basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with white dot position markers and a black headstock. Components include a pair of Ibanez STD-(N/B)5 pickups channeled through an active EQB-IIC 2-Band EQ, a B105 bridge with 16.5mm string spacing, a plastic nut, Ibanez tuning machines and chrome hardware.

The GSR390 and GSR396 are similar four and six string models.

The GSR395 was discontinued after 2011.

Specifications[]

Related content: GIO series | Soundgear series | Models-icon
Specifications for GSR395
Model name: GSR395
Year(s) offered: 2004–2011
Sold in: Asia & South America
Made in: China
Finish(es): Walnut (WN)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
2004-2008: B105 fixed
2009-2011: B15 fixed (16.5mm string spacing)
Knob style:
Knurled metal dome chrome
Hardware color:
Chrome
Neck
Neck type:
GSR5
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
Plastic (45mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez STD-B5 passive
Neck pickup:
Ibanez STD-N5 passive
Electronics:
EQB-IIC 2-Band EQ
Controls:
Volume / Balancer / Treble boost/cut - Bass boost/cut
Battery:
9V
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)
