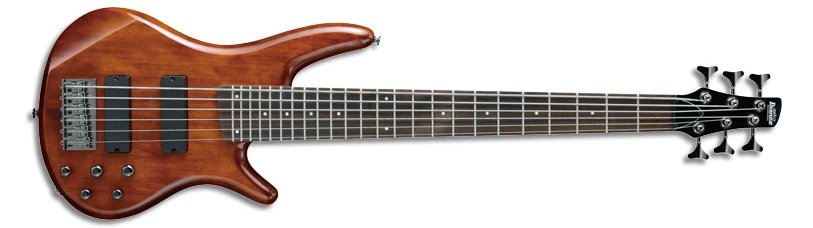

2013 GSR256 WN 2Y 03
GSR256 Walnut Red copyright sprite

The GSR256 is a six string Soundgear series solid body electric bass model introduced by Ibanez in mid-2012. It was made in China as part of the entry level GIO line.

The GSR256 features a double-cutaway poplar body bolted to a maple neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez JBH6 "Standard" passive pickups feeding an Ibanez EQB-IIID preamp with a three-band EQ, an Accu-Cast B16 bridge with 16.5mm string spacing, a plastic nut and Ibanez tuning machines.

The GSR250 and GSR255 are four string and five string versions. The SR256 is a related model in the Standard line.

The GSR256 was discontinued after 2015 and replaced for 2016 with the GSR256B which is a similar model with black hardware.

Specifications[]

Related content: GIO series | Soundgear series | Models-icon
Specifications for GSR256
Model name: GSR256
Year(s) offered: 2012–2015
Sold in: Americas & Oceania
Made in: China
Finish(es): Walnut (WN)
Body
Body type:
Solid body
Body material:
Poplar
Neck joint:
AANJ
Bridge:
Accu-Cast B16 (16.5mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
GSR6
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
Plastic (54mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
Ibanez JBH6 "Standard" passive
Neck pickup:
Ibanez JBH6 "Standard" passive
Electronics:
Ibanez EQBIII-D 3-band EQ
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble)
Battery:
9V
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)

Images[]

Additional details
Controls EQB-IIID
Controls layout

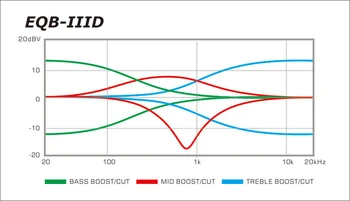

FreqResponseGraph EQB-IIID
EQ frequency response
