2019 GSR206 BK 1P 05

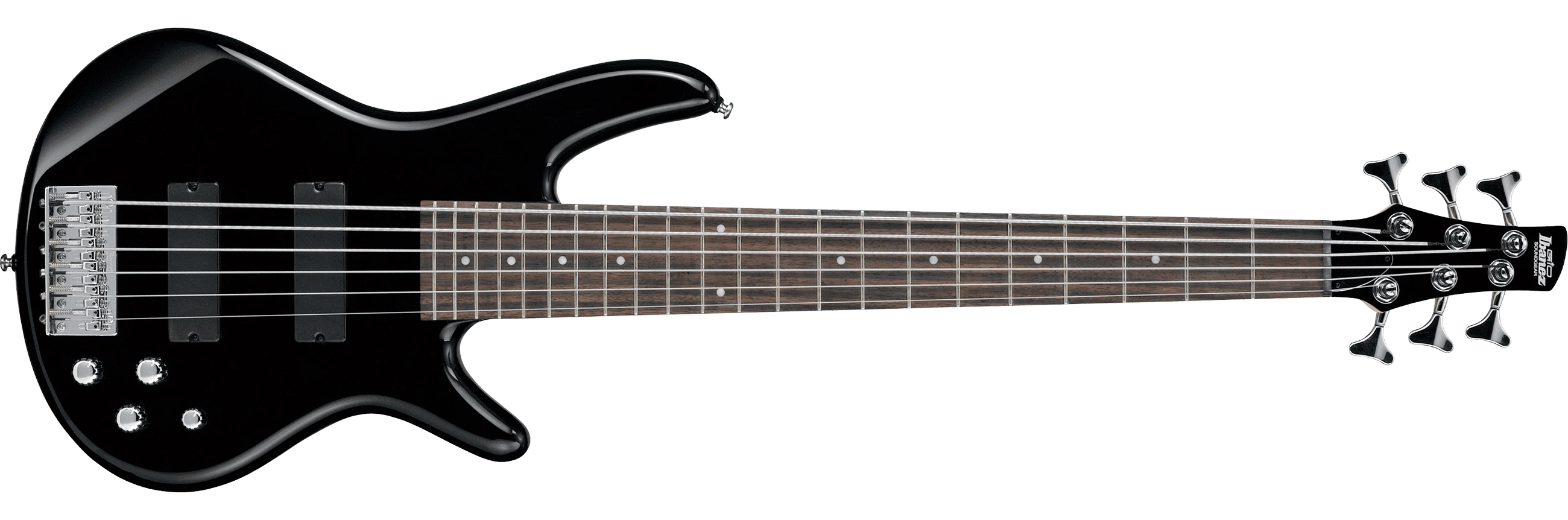

GSR206 Black (more images) Red copyright sprite

The GSR206 is a six string Soundgear series solid body electric bass model introduced by Ibanez in 2009. It is made in Indonesia as part of the entry level GIO line.

The GSR206 features a double-cutaway agathis body bolted to a maple neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez Dynamix passive bass pickups, a B16 bridge with 16.5mm string spacing, a plastic nut and Ibanez tuning machines.

For 2015 the body material was changed to mahogany. For 2018 the body material was changed to poplar and the rosewood fingerboard was replaced with jatoba.

The GSR200 and GSR205 are similar four and five string models. The GSR206L is a left-handed version. The GSR206B is a similar model with black hardware.

Specifications

Specifications for GSR206
Year(s) produced: 2009–2020
Sold in: North & South America and Oceania 2009–2019 / USA
Made in: Indonesia
Finish(es): Black (BK) / Candy Apple (CA) 2013 / Jewel Blue (JB) 2013–2017
Body
Body type:
Solid body
Body material:
2009–2014: Agathis or basswood (TR finish)
2015–2017: Mahogany
2018–2020: Poplar
Neck joint:
AANJ
Bridge:
B16 fixed (16.5mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
GSR6
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
2009–2017: Rosewood
2018–2020: Jatoba
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
Plastic (54mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
Ibanez Dynamix H passive
Neck pickup:
Ibanez Dynamix H passive
Electronics:
Ibanez Phat II EQ
Controls:
Two volume / tone / EQ knob
Battery:
9V
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B

Images

Additional finishes/ details
Candy Apple
Jewel Blue
Controls GSR
Controls layout
EQ Phat-II
EQ frequency charts
Wimage An image for this article is missing!
An image of the GSR206 Candy Apple and Jewel Blue is wanted for this article. You can help by finding, uploading and adding it!
