For the more recent model with the same name, see GSR205.
2003 GSR205 BK 1P 02

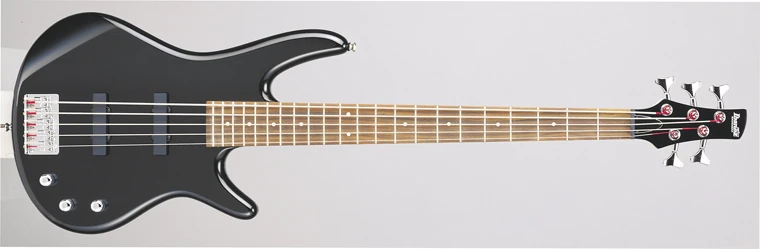

GSR205 Black (more images) Red copyright sprite

The GSR205 is a five string Soundgear series solid body electric bass model introduced by Ibanez in 1999. It was made in Indonesia as part of the entry level GIO line.

The GSR205 features a double-cutaway agathis body bolted to a maple neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez DXS passive Jazz bass pickups, a standard bridge, a plastic nut and Ibanez tuning machines.

The GSR200 is a similar four string model.

A new GSR205 with some changes replaced this model for 2004.

Specifications

Specifications for GSR205 (1999–2003)
Year(s) produced: 1999–2003
Sold in: Worldwide (excl. Japan)
Made in: Indonesia
Finish(es): Black (BK) / Gray Nickel (GN) 2001–2003 / Jewel Blue (JB) 2000–2003 / Transparent Red (TR) 2000–2003
Body
Body type:
Solid body
Body material:
Agathis
Neck joint:
AANJ
Bridge:
Standard-5 fixed
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
GSR5
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
Plastic (45mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
JJ
Bridge pickup:
Ibanez DXS-2 (J) passive
Neck pickup:
Ibanez DXS-1 (J) passive
Controls:
Two volume / tone
Output jack:
1/4" (side mount)
Factory tuning:
1G,2D,3A,4E,5B

Images

Additional finishes
Gray Nickel
Jewel Blue
Transparent Red
Wimage An image for this article is missing!
An image of the GSR205 Gray Nickel, Jewel Blue and Transparent Red is wanted for this article. You can help by finding, uploading and adding it!
