2015 GSR205L BK 1P 01

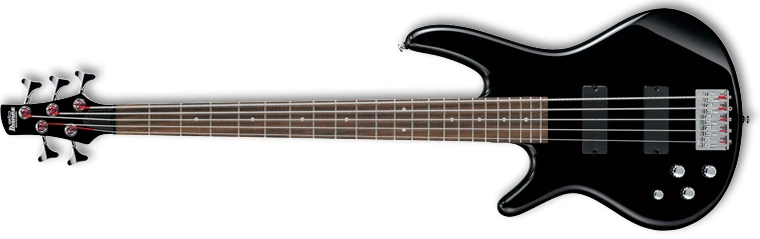

GSR205L Black (more images) Red copyright sprite

The GSR205L is a five string Soundgear series solid body electric bass model introduced by Ibanez in 2007. It has been made in both Indonesia and China as part of the entry level GIO line.

The GSR205L features a double-cutaway agathis body bolted to a maple neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez Dynamix passive pickups with a Phat II equalizer, a B15 bridge with 16.5mm string spacing, a plastic nut and Ibanez tuning machines.

For 2015 the body material was changed to mahogany.

The GSR200L and GSR206L are similar four and six string models. The GSR205 is a right-handed version.

The GSR205L was discontinued after 2015.

Specifications

Specifications for GSR205L
Year(s) produced: 2007–2015
Sold in: Asia / China / Europe / North & South America and Oceania / USA
Made in: Indonesia (2011–2015) / China (2007–2010, 2013)
Finish(es): Black (BK) / Transparent Red (TR) 2010, 2013
Body
Body type:
Solid body
Body material:
2007–2014: Agathis
2015: Mahogany
Neck joint:
AANJ
Bridge:
B15 fixed (19mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
GSR5
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
Plastic (45mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
Ibanez Dynamix H passive
Neck pickup:
Ibanez Dynamix H passive
Electronics:
Ibanez Phat II EQ
Controls:
Two volume / tone / EQ knob
Battery:
9V
Output jack:
1/4" stereo barrel (side mounted)
Factory tuning:
1G,2D,3A,4E,5B

Images

Additional finishes/ details
Transparent Red
Controls GSR
Controls layout
EQ Phat-II
EQ frequency charts
Wimage An image for this article is missing!
An image of the GSR205L Transparent Red is wanted for this article. You can help by finding, uploading and adding it!
