GSR205EX

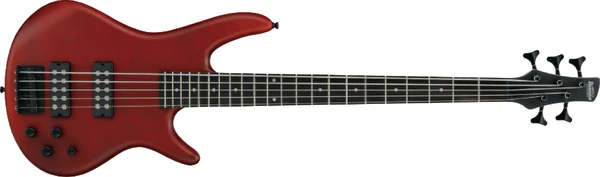

GSR205EX Burgundy Wine Flat (more images)

The GSR205EX is a five string Soundgear series solid body electric bass model introduced by Ibanez in 2010. It was produced in China as part of the entry level GIO line.

The GSR205EX features a double-cutaway basswood body bolted to a maple neck with a 22-fret rosewood fingerboard with white dot position markers and a black headstock. Components include a pair of Ibanez PPD5 pickups channeled through an active Phat EQ, a B15 bridge with 16.5mm string spacing, a plastic nut, Ibanez tuning machines and black hardware.

The GSR200EX is a similar four string version.

The GSR205EX was discontinued after 2012.

Specifications[]

Related content: GIO series | Soundgear series |

Specifications for GSR205EX

Model name: GSR205EX

Year(s) offered: 2010–2012

Sold in: Americas / Asia / Oceania / USA 2010

Made in: China

Price: MSRP: US$428.56 (2010)

Finish(es): Black Flat (BKF) / Burgundy Wine Flat (BWF) 2010-2011

Body

Body type:
Solid body

Body material:
Basswood

Neck joint:
AANJ

Bridge:
B15 fixed (16.5mm string spacing)

Knob style:
Plastic

Hardware color:
Black

Neck

Neck type:
GSR5

Neck material:
3-piece maple

Scale length:
864mm / 34"

Fingerboard material:
Rosewood

Fingerboard inlays:
White dot

Frets:
22 / medium

Nut:
Plastic (45mm)

Machine heads:
Ibanez die-cast

Electronics/ Strings

Pickup configuration:
HH

Bridge pickup:
Ibanez PPD5 bridge passive

Neck pickup:
Ibanez PPD5 neck passive

Electronics:
Phat-II EQ

Controls:
2 Volume / Tone / Phat control

Battery:
9V

Output jack:
¼" stereo barrel (side mounted)

String gauge (factory):
.045/.065/.085/.105/.130

Factory tuning:
1G,2D,3A,4E,5B (E Standard)

About this table

Images[]

Other finish

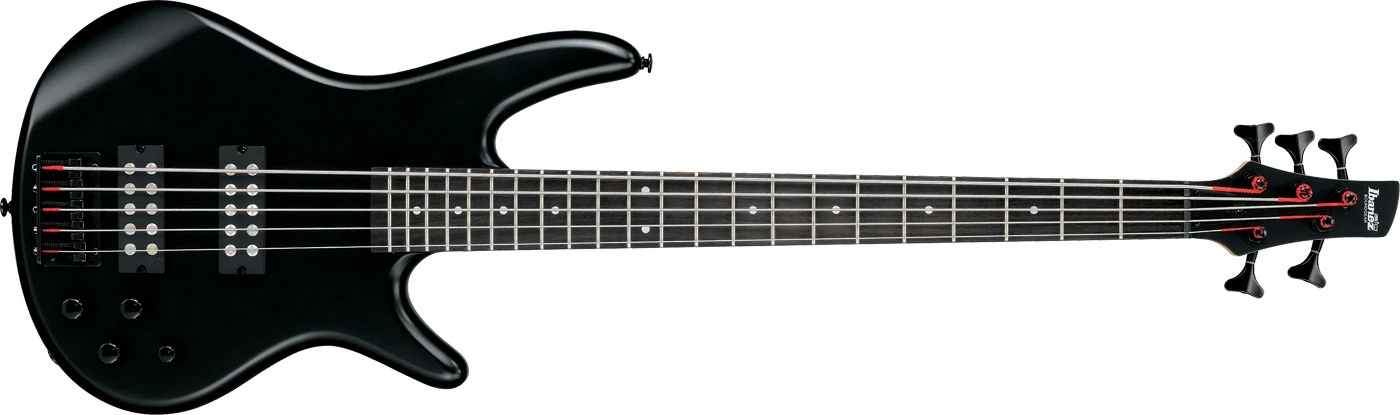

Black Flat

Additional details

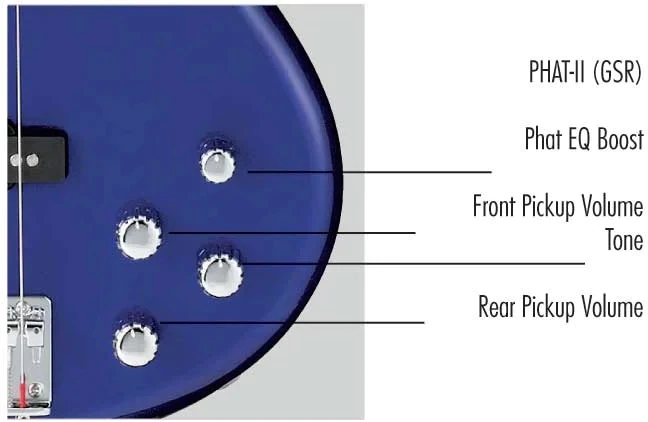

PHAT-II EQ "GSR"

GSR205EX
