2019 GSR205BF WNF 1P 02

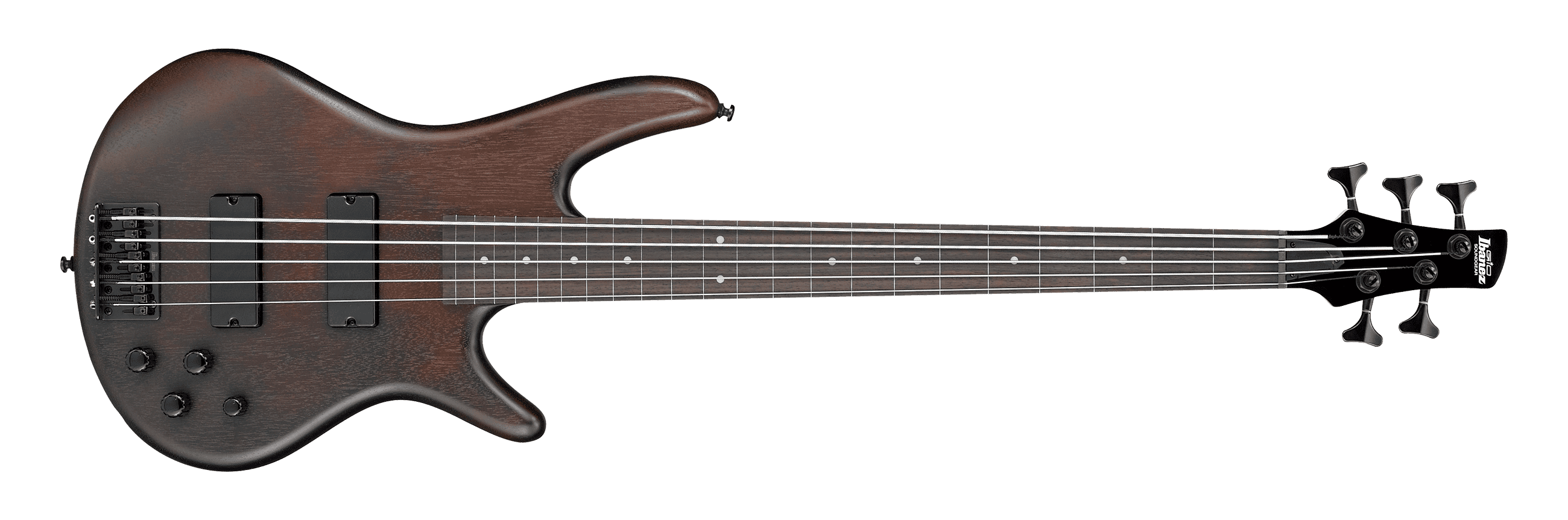

GSR205BF Walnut Flat Red copyright sprite

The GSR205BF is a five string, fretless, Soundgear series solid body electric bass model introduced by Ibanez in mid 2017. It was made in Indonesia as part of the entry-level GIO line.

The GSR205BF features a double-cutaway mahogany body bolted to a maple neck with a fretless rosewood fingerboard with white dot position markers. Components include a pair of Ibanez Dynamix passive pickups with a jazz pickup at the bridge and a precision pickup at the neck, a B10 bridge with 19mm string spacing, a plastic nut and Ibanez tuning machines.

For 2018 the rosewood fingerboard was replaced with jatoba. For 2019 the body material was changed to poplar.

The GSR205B is a similar fretted model. The GSR200BF is similar four string model.

The GSR205BF was discontinued after 2019.

Specifications

Specifications for GSR205BF
Year(s) produced: 2017–2019
Sold in: Europe
Made in: Indonesia
Finish(es): Walnut Flat (WNF)
Body
Body type:
Solid body
Body material:
2017–2019: Mahogany
2019: Okoume
Neck joint:
AANJ
Bridge:
B15 fixed (19mm string spacing)
Knob style:
Plastic
Hardware color:
Black
Neck
Neck type:
GSR5
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
2017: Rosewood
2018–2019: Jatoba
Fingerboard inlays:
White dot
Frets:
None
Nut:
Plastic (45mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
Ibanez Dynamix J (J) passive
Neck pickup:
Ibanez Dynamix P (P) passive
Electronics:
Ibanez Phat II EQ
Controls:
Two volume / tone / EQ knob
Battery:
9V
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B

Images

Additional details
Controls GSR
Controls layout
EQ Phat-II
EQ frequency charts
