For the more recent model with the same name, see GSR200.

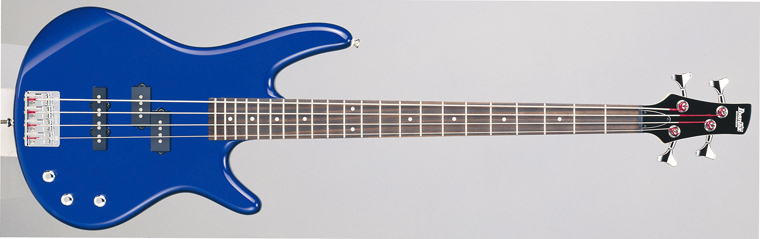

2003 GSR200 JB 1P 02
GSR200 Jewel Blue (more images) Red copyright sprite

The GSR200 is a Soundgear series solid body electric bass model introduced by Ibanez in 1999. It was made in both Indonesia and China as part of the entry level GIO line.

The GSR200 features a double-cutaway agathis body bolted to a maple neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez Powersound passive pickups with a Jazz pickup at the bridge and a Precision pickup at the neck, a standard bridge, a plastic nut and Ibanez tuning machines.

The GSR205 is a similar five string model. The GSR200L is a left-handed version.

A new GSR200 with some changes replaced this model for 2004.

Specifications

Specifications for GSR200 (1999–2003)
Year(s) produced: 1999–2003
Sold in: Worldwide (excl. Japan)
Made in: Indonesia (1999–2003) / China (2001–2003)
Finish(es): Black (BK) / (DB) 2002–2003 / Jewel Blue (JB) / Metallic Blue (MB) 2000–2003 / (TGN) 2002–2003 / Transparent Red (TR)
Body
Body type:
Solid body
Body material:
Agathis
Neck joint:
AANJ
Bridge:
Standard-4 fixed
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
GSR4
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
Plastic (41mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
Ibanez Powersound J (J) passive
Neck pickup:
Ibanez Powersound P (P) passive
Controls:
Two volume / tone
Output jack:
1/4" (side mount)
Factory tuning:
1G,2D,3A,4E

Images

Additional finishes

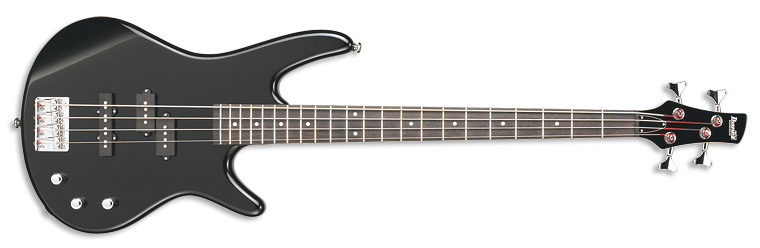

2003 GSR200 BK 1P 02
Black
DB
Metallic Blue
TGN

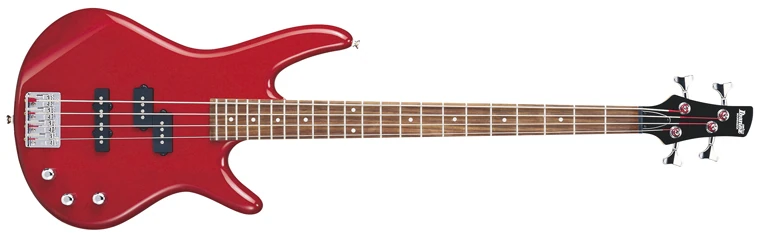

2003 GSR200 TR 1P 02
Transparent Red
Wimage An image for this article is missing!
An image of the GSR200 DB, Metallic Blue and TGN is wanted for this article. You can help by finding, uploading and adding it!
