For the new model with the same name, see GSR200L.
GSR200L-BK
GSR200L Black Red copyright sprite

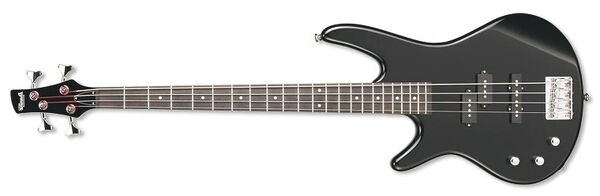

The GSR200L is a left-handed Soundgear series solid body electric bass model introduced by Ibanez in 2000. It has been made in both Indonesia and China as part of the entry level GIO line.

The GSR200L features a double-cutaway agathis body bolted to a maple neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez Powersound passive pickups with a jazz pickup at the bridge and a precision pickup at the neck, an Active equalizer, a Standard 4 bridge with 19mm string spacing, a plastic nut and Ibanez tuning machines.

The GSR200 (1999–2003) is a right-handed version.

The GSR200L was discontinued after 2003 and was replaced by a new model with the same name GSR200L in 2004.


Specifications[]

Specifications for GSR200L (2000-2003)
Model name: GSR200L (2000-2003)
Year(s) offered: 2000–2003
Sold in: Asia / Europe
Made in: Indonesia (2000–2003)/ China (2001–2003)
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Agathis
Neck joint:
AANJ
Bridge:
2000-2002: Standard 4
2003:B10 fixed (19mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
GSR4
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
Plastic (41mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
Ibanez Powersound J (J) passive
Neck pickup:
Ibanez Powersound P (P) passive
Electronics:
Active EQ
Controls:
Two volume / tone
Battery:
9V
Output jack:
1/4" stereo barrel (side mounted)
Factory tuning:
1G,2D,3A,4E
