GSR200EX-GSF

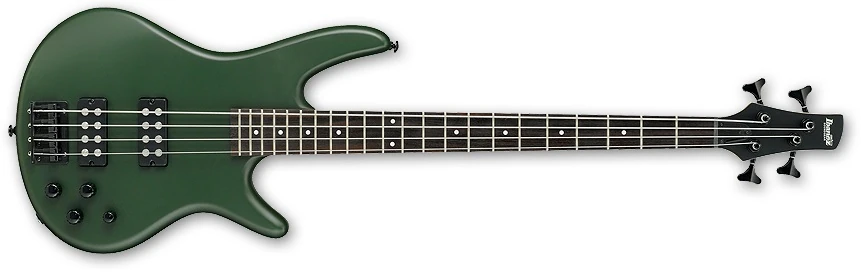

GSR200EX Green Shadow Flat (more images) Red copyright sprite

The GSR200EX is a Soundgear series solid body electric bass model introduced by Ibanez in mid-2009. It was produced in China as part of the entry level GIO line.

The GSR250M features a double-cutaway body bolted to a maple neck with a 22-fret rosewood fingerboard with black dot position markers. Components include a pair of Ibanez PPD4 pickups channeled through an active Phat II EQ, a B10 fixed bridge with 19mm string spacing, a plastic nut, Ibanez tuning machines, and black hardware.

The body material is variously referred to as basswood, mahogany or nato. It's not clear whether there were different versions produced for different markets/ years, or if these are just erroneous catalog descriptions.

The GSR205EX is a similar five string version.

The GSR200EX was discontinued after 2013.

Specifications[]

Related content: GIO series | Soundgear series | Models-icon
Specifications for GSR200EX
Model name: GSR200EX
Year(s) offered: 2009–2013
Sold in: Americas & Oceania / Asia / Europe / USA
Made in: China
Price: MSRP: US$357.13 (2009–2010)[1] / 289.00 incl. 19.6% tax (2010)[2] / 259.00 incl. 20% tax (2010)[3] / 279.00 incl. 20% tax (2011)[4]
Finish(es): Black Flat (BKF) / Green Shadow Flat (GSF) Asia & Europe 2010–2011
Body
Body type:
Solid body
Body material:
Basswood, Nato, or Mahogany
Neck joint:
AANJ
Bridge:
B10 fixed (19mm string spacing)
Strap buttons:
standard
Knob style:
Plastic
Hardware color:
Black
Neck
Neck type:
GSR4
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Black dots
Frets:
22 / medium nickel silver
Nut:
Black plastic (41mm)
Machine heads:
Ibanez die-cast
String gauge (factory):
.045/.065/.080/.100
Factory tuning:
1G,2D,3A,4E (E standard)
Electronics/ case
Pickup configuration:
HH
Bridge pickup:
Ibanez PPD4 bridge
Neck pickup:
Ibanez PPD4 neck
Electronics:
Phat II EQ
Controls:
Two volumes / Master tone / Phat II Bass Boost Active
Battery:
9V
Output jack:
¼" mono (side mounted)
Recommended case:
EXB1000C

Images[]

Other available finish

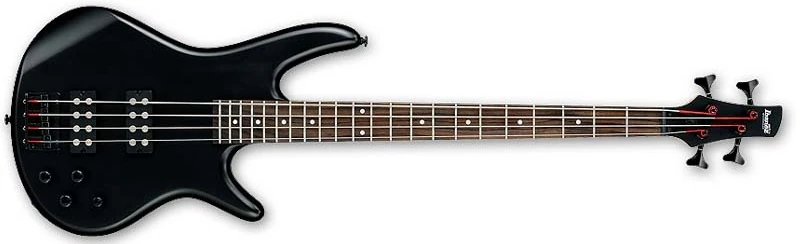

GSR200EX-BKF
Black Flat
Additional details
PHAT-II GSR
PHAT-II EQ "GSR"
