2019 GSR200BL WNF 1P 02.png

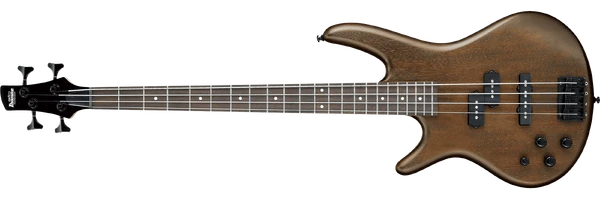

GSR200BL Walnut Flat (more images) Red copyright sprite.png

The GSR200BL is a left-handed Soundgear series solid body electric bass model introduced by Ibanez in mid 2015. It is made in Indonesia as part of the entry-level GIO line.

The GSR200BL features a double-cutaway mahogany body bolted to a maple neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez Powersound passive pickups with a Jazz pickup at the bridge and a Precision pickup at the neck, a Standard bridge with 19mm string spacing, a plastic nut and Ibanez tuning machines.

For 2018 the rosewood fingerboard was replaced with Jatoba. For 2019 the body material was changed to nyatoh.

The GSR200L is a similar model with chrome hardware. The GSR200B is a right-handed version.

Specifications

Specifications for GSR200BL
Year(s) produced: 2015–2020
Sold in: Europe 2016 / USA
Made in: Indonesia
Finish(es): Walnut Flat (WNF)
Body
Body type:
Solid body
Body material:
2015–2018: Mahogany
2019–2020: Nyatoh
Neck joint:
AANJ
Bridge:
B10 fixed (19mm string spacing)
Knob style:
Plastic
Hardware color:
Black
Neck
Neck type:
GSR4
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
2015–2017: Rosewood
2018–2020: Jatoba
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
Plastic (41mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
Ibanez Dynamix J (J) passive
Neck pickup:
Ibanez Dynamix P (P) passive
Electronics:
Ibanez Phat II EQ
Controls:
Two volume / tone / EQ knob
Battery:
9V
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E

Images

Additional details

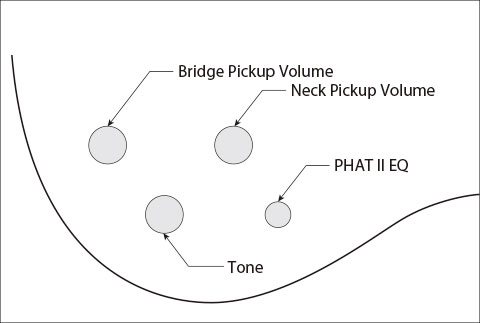

Controls GSR.jpg
Controls layout

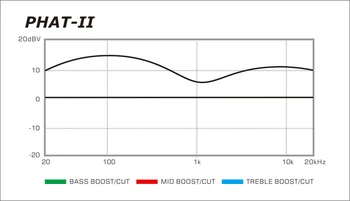

EQ Phat-II.jpg
EQ frequency charts
