GSR105EXM

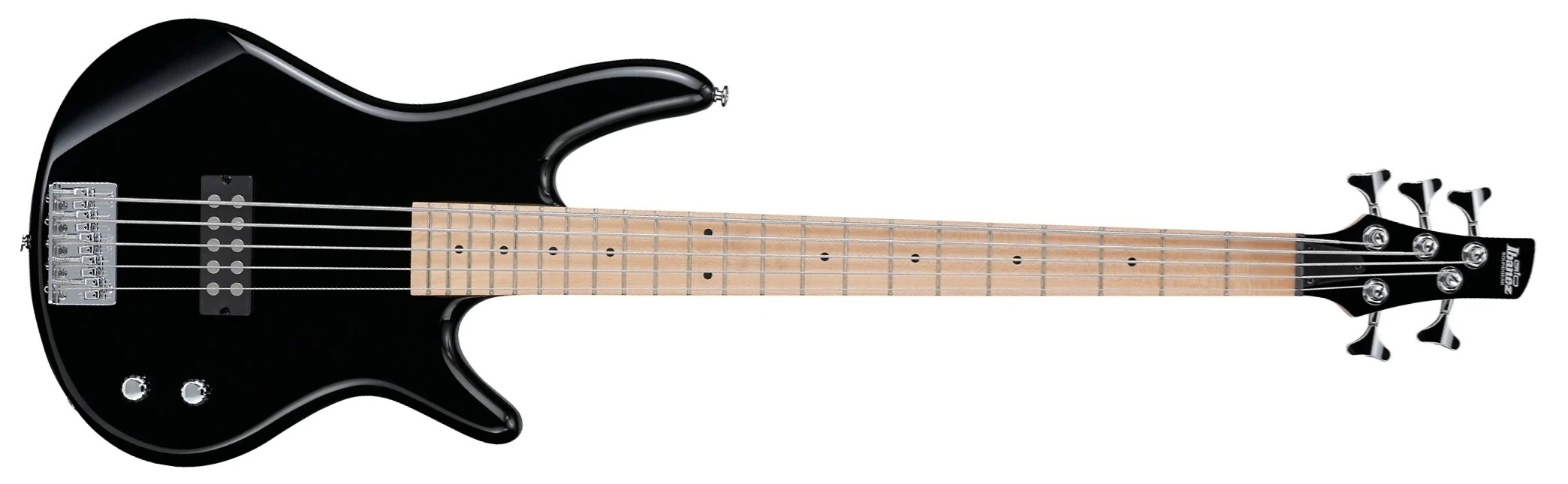

GSR105EXM Black

The GSR105EXM is a five string Soundgear series solid body electric bass model introduced by Ibanez for 2012. It was produced in China as part of the entry level GIO line.

The GSR105EXM features a double-cutaway basswood body bolted to a maple neck with a 22-fret maple fingerboard with black dot position markers and a black headstock. Components include an Ibanez PPD5 passive pickup, a B15 bridge with 16.5mm string spacing, a plastic nut, Ibanez tuning machines and chrome hardware.

For 2013 the body was changed to agathis.

The GSR100EXM is a similar four string version.

The GSR105EXM was discontinued after 2013.

Specifications

Related content: GIO series | Soundgear series |

Specifications for GSR105EXM

Model name: GSR105EXM Year(s) offered: 2012-2013 Sold in: USA Made in: China Price: MSRP: US$285.70 (2012-2013) Finish(es): Black (BK)
Body Body type: Solid body Body material: "2012": Basswood "2013": Agathis Neck joint: AANJ Bridge: B15 fixed (16.5mm string spacing) Knob style: Knurled metal dome Hardware color: Chrome	Neck Neck type: GSR5 Neck material: 3-piece maple Scale length: 864mm / 34" Fingerboard material: Maple Fingerboard inlays: Black dots Frets: 22 / medium Nut: Plastic (45mm) Machine heads: Ibanez die-cast	Electronics/ Strings Pickup configuration: H Bridge pickup: Ibanez PPD5 pasive Controls: Master volume, master tone, Output jack: ¼" stereo barrel (side mounted) String gauge (factory): .045/.065/.085/.105/.130 Factory tuning: 1G,2D,3A,4E,5B (E Standard)

About this table

Sources

• 2012 USA catalog (p. 23)
• 2013 USA catalog (p.73)
