GSA370QM AM

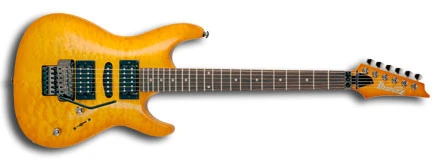

GSA370QM in Amber (more images) Red copyright sprite

The GSA370QM is an SA series solid body electric guitar model introduced by Ibanez in 2003. It is part of the entry-level GIO line.

The GSA370QM features a double locking ILT1 tremolo bridge, a quilted maple top and Ibanez pickups in an HSH configuration.

Similar models were the GSA270 and GSA270DX. All three of these models have a Floyd Rose-style double-locking tremolo and HSH pickup configuration. As of 2016, these three are the only three models in the entire SA series that have either feature.

Specifications[]

Related content: GIO series | SA series | S series | Models-icon
Specifications for GSA370QM
Model name: GSA370QM
Year(s) offered: 2003–2004
Sold in: Japan / USA
Made in: China
Finish(es): AM (Amber) / BB (Blackberry) / TB (Transparent Blue) / TK (Transparent Black)
Body
Body type:
Solid body
Body material:
Basswood with quilted maple top
Neck joint:
Bolt-on
Bridge:
ILT1 tremolo
Hardware color:
Cosmo black
Neck
Neck type:
GSA
Neck material:
1-piece maple
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
22 / medium
Electronics
Pickup configuration:
HSH
Bridge pickup:
STD-H2
Middle pickup:
STD-S4
Neck pickup:
STD-H1
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Other available finishes

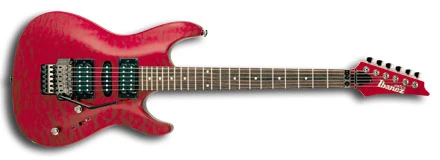

GSA370QM BB
GSA370QM Blackberry

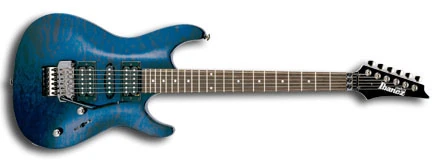

GSA370QM TB
GSA370QM Transparent Blue

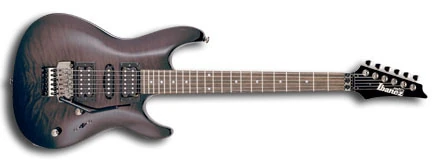

GSA370QM TK
GSA370QM Transparent Black
