GSA270 BK
GSA270 in Black (more images) Red copyright sprite

The GSA270 is an SA solid body electric guitar model offered by Ibanez in 2003. It was part of the entry-level GIO line.

The GS270 feature a double-locking ILT1 tremolo and white dot fingerboard inlays.

Similar models were the GSA270DX (which is a twin except for the fretboard inlays) and GSA370QM. All three of these models have a Floyd Rose-style double-locking tremolo and HSH pickup configuration. As of 2016, these three are the only three models in the entire SA series that have either feature.

Specifications[]

Related content: GIO series | SA series | S series | Models-icon
Specifications for GSA270
Model name: GSA270
Year(s) offered: 2003
Sold in: USA
Made in: China
Finish(es): BK (Black) / JB (Jewel Blue)
Body
Body type:
Solid body
Body material:
Agathis
Neck joint:
Bolt-on
Bridge:
ILT1 tremolo
Hardware color:
Black
Neck
Neck type:
GSA
Neck material:
1-piece maple
Fingerboard material:
Rosewood
Fingerboard inlays:
Dot
Frets:
22 / medium
Electronics
Pickup configuration:
HSH
Bridge pickup:
STD-H2
Middle pickup:
STD-S4
Neck pickup:
STD-H1
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Other available finishes

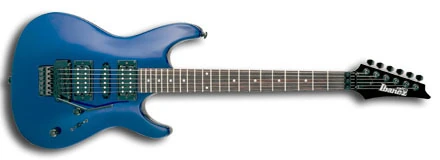

GSA270 JB
GSA270 Jewel Blue

Sources[]

  • Parts list on Ibanez website (archived December 2014)
