For the more recent version with the same name, see GRX6SP1.
2018 GRX6SP1 TBB 2Y 03

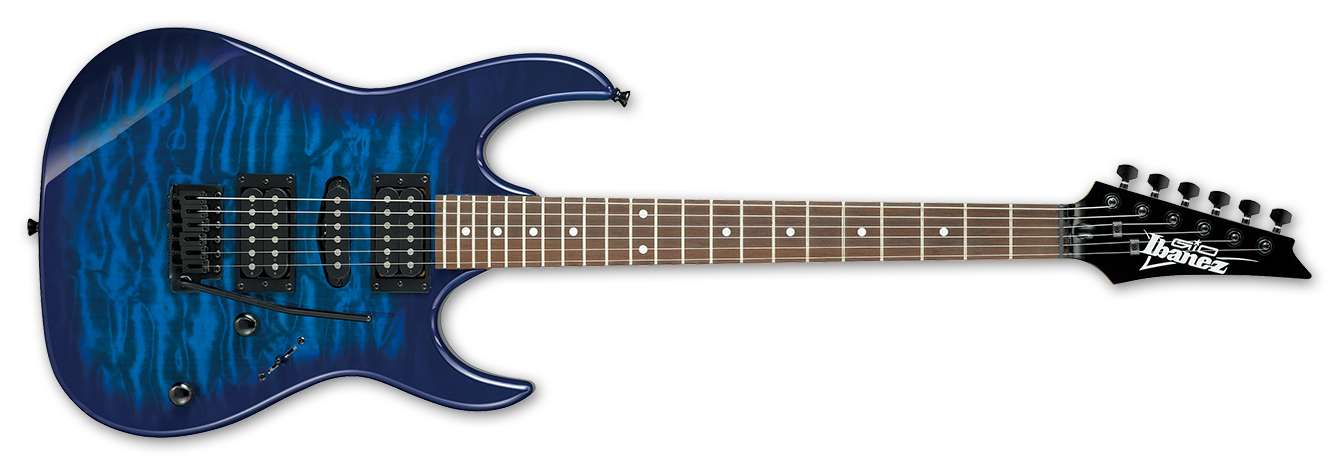

GRX6SP1 Transparent Blue Burst (more images) Red copyright sprite

The GRX6SP1 is an RX series solid body electric guitar model introduced by Ibanez in late 2016. It was made in China as part of the entry-level GIO line. It is a spot model which is available only in China.

The GRX6SP1 features an art grain quilted top on a poplar body bolted to a maple neck with a 22-fret fingerboard with white dot position markers. Components include Ibanez Infinity R pickups with a pair of humbuckers mounted in pickup rings flanking a single-coil, an Ibanez synchronized tremolo bridge and Ibanez die-cast tuning machines.

Initially the GRG6SP1 had a rosewood fretboard and a FAT-6 tremolo, but these were replaced for 2018 with a treated New Zealand pine fretboard and a T106 tremolo.

The GRX150 is a similar model without the exotic top and with a pickguard.

The GRX6SP1 was discontinued in 2019, but a new version was reintroduced for 2021.

Specifications[]

Related content: GIO series | RX series | Models-icon
Specifications for GRX6SP1 (2016–2019)
Model name: GRX6SP1 (2016–2019)
Year(s) offered: 2016–2019
Sold in: China
Made in: China
Finish(es): Transparent Blue Burst (TBB) / Transparent Black Burst (TKS) / Transparent Red Burst (TRB)
Body
Body type:
Solid body
Body material:
Poplar w/ art grain quilted top
Neck joint:
Bolt-on
Bridge:
2016–2017: FAT-6 tremolo
2018–2019: Ibanez T106 tremolo (10.5mm string spacing)
Hardware color:
Black
Neck
Neck type:
GRX
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
2016–2017: Rosewood
2018–2019: Treated New Zealand pine
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Black plastic (42mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Ibanez Infinity R bridge (H) passive/ ceramic'
Middle pickup:
Ibanez Infinity RS middle (S) passive/ ceramic'
Neck pickup:
Ibanez Infinity R neck (H) passive/ ceramic
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes/ details

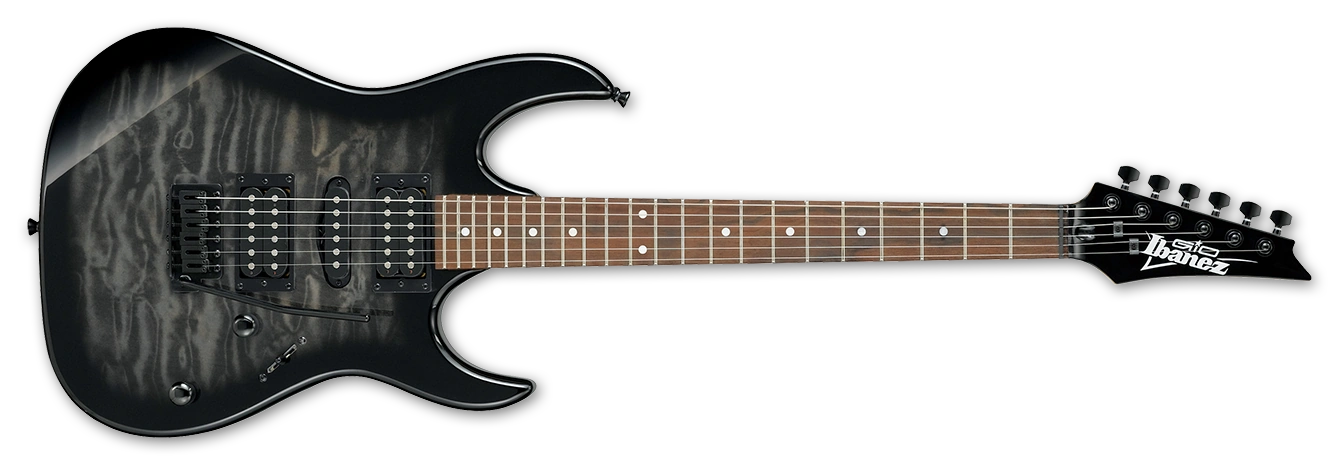

2018 GRX6SP1 TKS 2Y 03
Transparent Black Sunburst

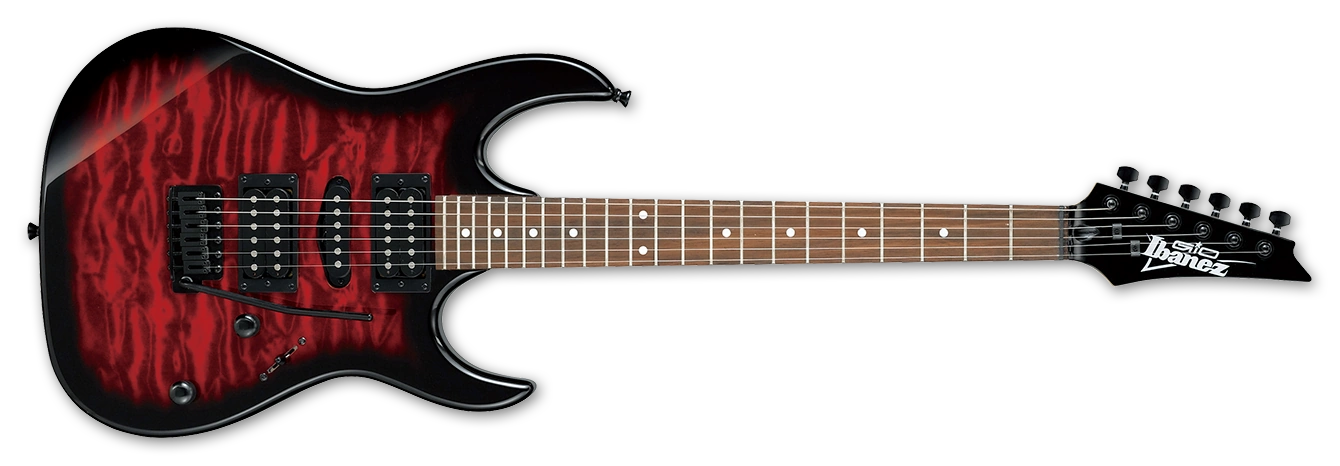

2018 GRX6SP1 TRB 2Y 03
Transparent Red Burst
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
2021 GRX6SP1 TBB 2Y 03 back
Rear of body
