GRX55 RD

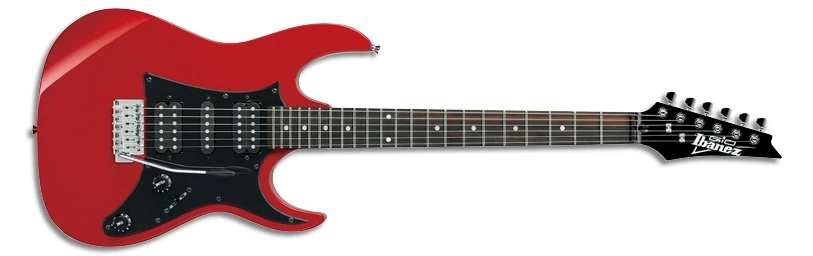

GRX55 Red (more images) Red copyright sprite

The GRX55 is an RX series solid body electric guitar model introduced by Ibanez in late 2014. It was made in China as part of the entry level GIO line

The GRX55 features a poplar body bolted to a maple neck with a 22-fret rosewood fingerboard with white dot position markers. Components include Ibanez Infinity pickups mounted in a black pickguard with a pair of humbuckers flanking a single-coil, a synchronized tremolo bridge and chrome hardware.

The GRX40 is a similar model with a single coil pickup in the neck position.

The GRX55 had a short production run; it was replaced for 2016 by the GRX55B which is similar except it has black hardware.

Specifications[]

Related content: GIO series | RX series | Models-icon
Specifications for GRX55
Model name: GRX55
Year(s) offered: 2014–2015
Sold in: China / Southeast Asia
Made in: China
Finish(es): Black Night (BKN) / Red (RD) / White (WH)
Body
Body type:
Solid body
Body material:
Poplar
Neck joint:
Bolt-on
Bridge:
Std. tremolo
Pickguard:
White
Hardware color:
Chrome
Neck
Neck type:
GRX
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Black plastic (42mm)
Electronics
Pickup configuration:
HSH
Bridge pickup:
Infinity R (H)
Middle pickup:
Infinity R (S)
Neck pickup:
Infinity R (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Other available finishes

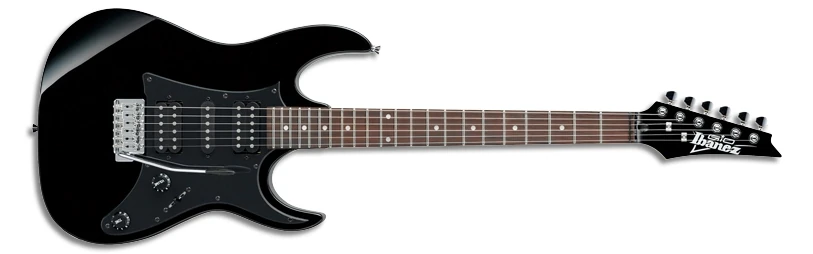

GRX55 BKN
Black Night

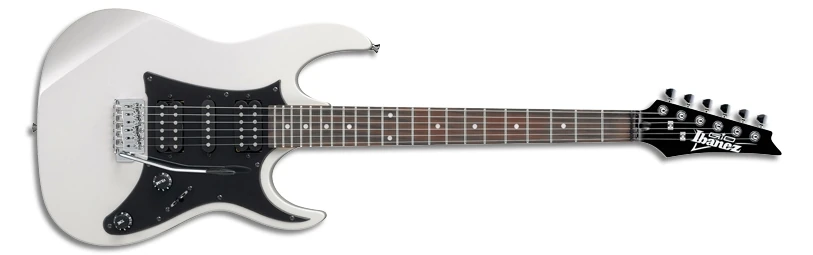

GRX55 WH
White
