GRX22 CA

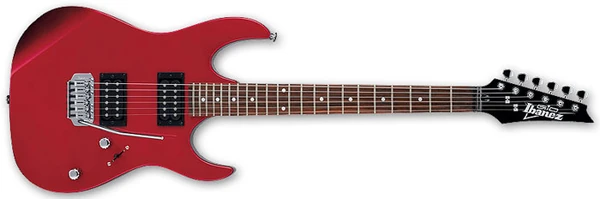

GRX22 Candy Apple (more images) Red copyright sprite

The GRX22 is an RX series entry level solid body electric guitar model introduced by Ibanez in 2000. It is part of the entry-level GIO line.

The GRX22 features a basswood (poplar since 2013) body bolted to a maple neck with a 22-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez humbucking pickups mounted in pickup rings and a FAT-6 non-locking six-screw synchronized tremolo bridge.

For 2018 the rosewood fretboard was replaced with treated New Zealand pine and the tremolo was specified as the "Standard tremolo".

The GRX20 is a similar model with a pickguard.

The GRX22 was discontinued after 2018.

Specifications

Specifications for GRX22
Year(s) produced: 2000–2018
Sold in: North & South America and Oceania
Made in: China
Finish(es): Baltic Blue Metallic (BEM) 2018 / Black (BK) 2000–2004 / Black Night (BKN) 2005–2016 / Candy Apple (CA) 2011–2018 / Metallic Red Sunburst (MRS) 2015–2016
Body
Body type:
Solid body
Body material:
2000–2012: Basswood
2013–2018: Poplar
Neck joint:
Bolt-on
Bridge:
2000–2017: FAT-6 tremolo
2018: Standard tremolo
Knob style:
Metal dome
Hardware color:
Chrome
Neck
Neck type:
GRX
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
2000–2017: Rosewood
2018: Treated New Zealand pine
Fingerboard inlays:
White dot
Frets:
22 / medium
Machine heads:
Ibanez die-cast
Electronics
Pickup configuration:
HH
Bridge pickup:
2000–2014: Ibanez PSND2 (H)
2015–2018: Ibanez Infinity R (H) passive/ ceramic
Neck pickup:
2000–2014: Ibanez PSND1 (H)
2015–2018: Ibanez Infinity R (H) passive/ ceramic
Controls:
Master volume / master tone / 3-way lever

Images

Additional finishes/ details

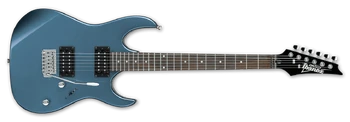

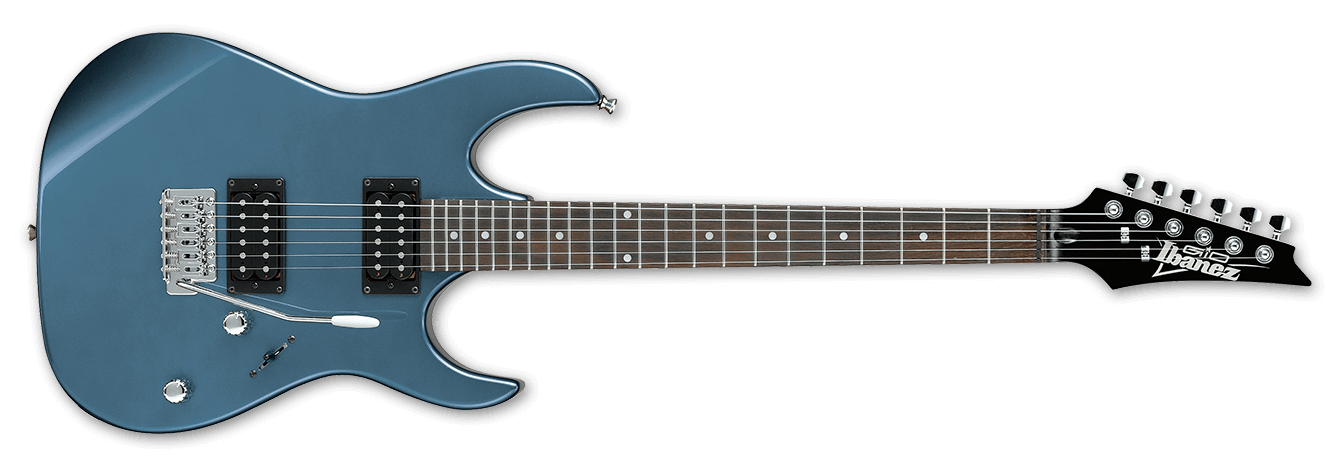

2018 GRX22 BEM
Baltic Blue Metallic

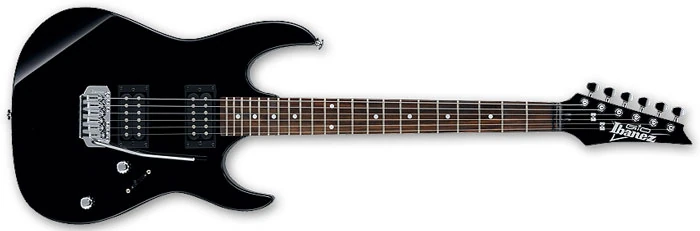

Black
GRX22 BKN
Black Night
Metallic Red Sunburst
HH 3-way toggle
Pickup switching diagram
Controls VT3L
Control layout
Wimage An image for this article is missing!
An image of the GRX22 Black (BK) and Metallic Red Sunburst (MRS is wanted for this article. You can help by finding, uploading and adding it!
}
