GRGM51HP BKN

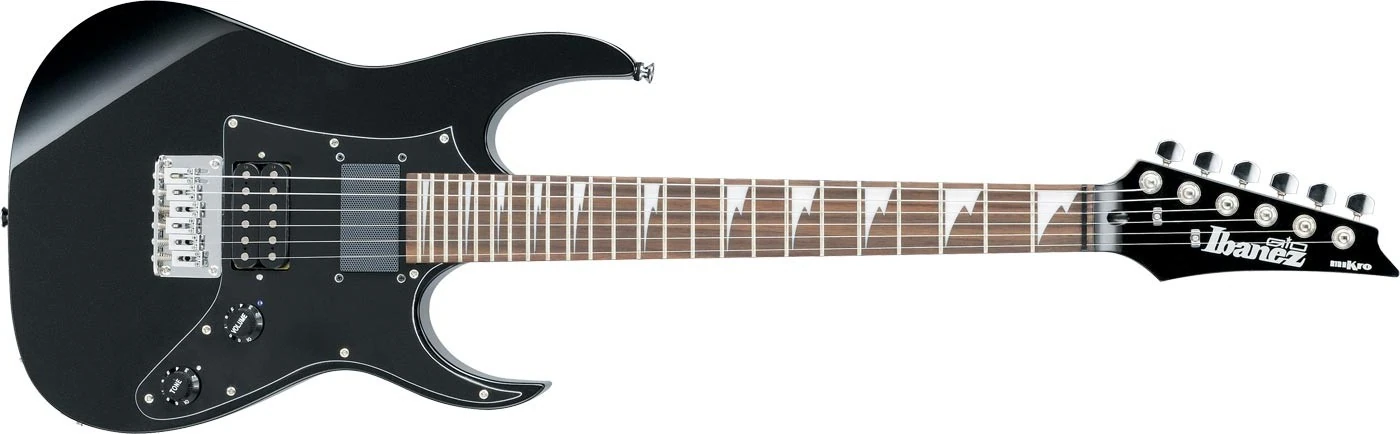

GRGM51HP Black Night (more images) Red copyright sprite

The GRGM51HP "Sonic" is an RG series short-scale miKro solid body electric guitar model introduced by Ibanez in late 2007. It was produced in China as part of the entry-level GIO line.

The GRGM51HP features a nato body bolted to a 22.2" scale maple neck with a 24-fret rosewood fingerboard with sharktooth position markers. It is distinguished from the other models in the miKro lineup with a built-in speaker in place of the neck pickup which allows some distortion effects. Due to the addition of the speaker, the GRGM51HP has only a single humbucker pickup in the bridge position. In addition to the standard ¼" output jack there is also a headphone output as well as a 12V/ 300mA DC input which can power the speaker in place of the on-board 9V battery.

In place of the tone control the GRGM51HP has a 5-way rotary switch to select a variety of built-in distortion effects: a tuning tone, a clean tone, a dirt/crunch tone, a distortion, and a "metal" distortion.

The GRGM51HP was discontinued in 2008 and sold only in the USA market.

Specifications[]

Related content: RG series | GIO series | miKro series | Models-icon
Specifications for GRGM51HP
Model name: GRGM51HP
Year(s) offered: 2007–2008
Sold in: USA
Made in: China
Finish(es): Black Night (BKN) / Red (RD) / Yellow (YL)
Body
Body type:
Solid body
Body material:
Nato
Neck joint:
AANJ
Bridge:
Fixed bridge
Pickguard:
Black
Knob style:
Plastic top hat
Hardware color:
Black
Neck
Neck type:
GRGM
Neck material:
Maple
Scale length:
564mm/ 22.2"
Fingerboard material:
Rosewood
Fingerboard inlays:
Sharktooth
Frets:
24 / medium nickel silver
Nut:
Black plastic (42mm)
Machine heads:
Ibanez
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
H
Bridge pickup:
Standard (H)
Controls:
Master volume / rotary effect selector
Output jack:
¼" mono (side mounted in oval plate) / 3.5mm headphone jack / DC input

Images[]

Other available finishes

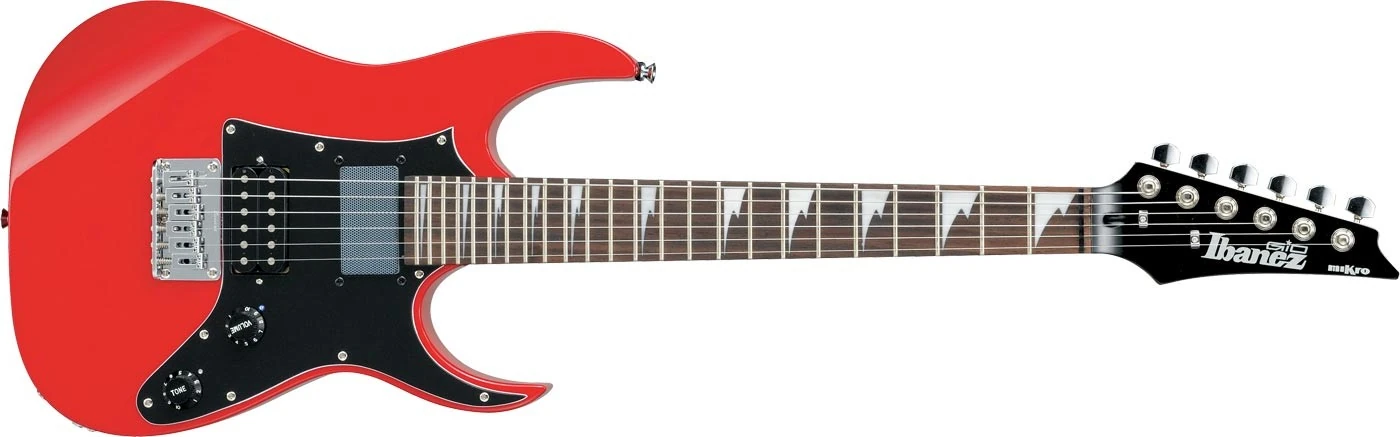

GRGM51HP RD
Red
GRGM51HP YL
Yellow
