GRGM21L BKN

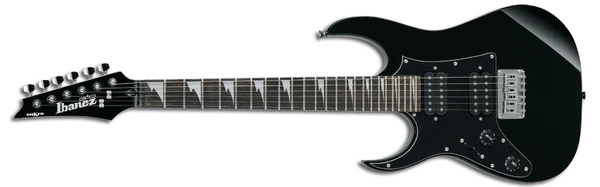

GRGM21L Black Night (more images) Red copyright sprite

The GRGM21L is a left-handed RG series compact solid body electric guitar model introduced by Ibanez in 2011. It is produced in China as part of the entry-level GIO line.

The GRGM21L features a solid wood body (see specs for specific species) bolted to a maple neck with a 24-fret fingerboard with sharktooth position markers. Components include dual Ibanez humbucking pickups and a fixed bridge.

In mid-2017 a new fretboard material, treated New Zealand pine, replaced rosewood.[1] For 2018 the bridge was identified as the F106. For 2019 the fretboard material was changed to Jatoba, the body was once again basswood and the 3-way lever pickup selector was replaced with a 5-way.

Like its right-handed counterpart, the GRGM21, the GRGM21L features a smaller body and a 22.2 inch scale length neck instead of the more standard 24¾" to 25½" scale.

Specifications

Specifications for GRGM21L
Year(s) produced: 2011–2020
Sold in: Europe 2018 / North & South America and Oceania 2011–2018 / USA
Made in: China
Finish(es): Black Night (BKN) / Jewel Blue (JB) 2013–2015
Body
Body type:
Solid body
Body material:
2011–2012: Basswood
2013–2018: Poplar
2019–2020: Basswood
Neck joint:
AANJ
Bridge:
2011–2017: Fixed bridge
2018–2020: F106 fixed
Pickguard:
Black
Knob style:
Plastic top hat
Hardware color:
Chrome
Neck
Neck type:
GRGM
Neck material:
1-piece maple
Scale length:
564mm/ 22.2"
Fingerboard material:
2011–2017: Rosewood
2017–2018: Treated New Zealand pine
2019–2020: Jatoba
Fingerboard inlays:
Sharktooth
Frets:
24 / medium
Nut:
Black plastic (41mm)
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
2011–2014: Ibanez PSND2 (H)
2015–2020: Ibanez Infinity R (H)
Neck pickup:
2011–2014: Ibanez PSND1 (H)
2015–2020: Ibanez Infinity R (H)
Controls:
2011–2018: Master volume / master tone / 3-way lever
2019: Master volume / master tone / 5-way lever
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details
Jewel Blue
HH 3-way toggle
Pickup switching diagram (2011–2018)
Controls VT3L lefty

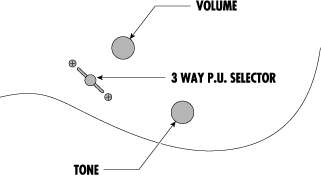

Control layout (2011–2018)
HH 5-way single-split
Pickup switching diagram (2019–2020)
Controls VT5 lefty
Control layout (2019–2020)
Wimage An image for this article is missing!
An image of the GRGM21L Jewel Blue (JB) is wanted for this article. You can help by finding, uploading and adding it!
  • 2011 USA catalog

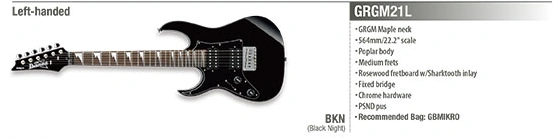

  • 2013 USA catalog

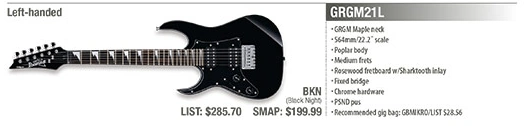

  • 2014 USA catalog
  • 2015 USA catalog

Sources

  1. GRGM21L product page, Ibanez USA (website), archived from the original December 2017
