GRG370FM AL

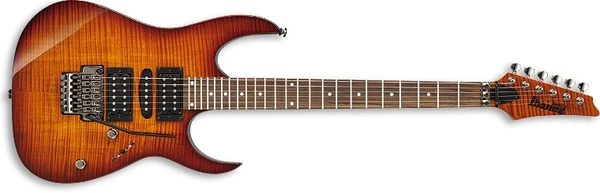

GRG370FM Autumn Leaf (more images) Red copyright sprite

The GRG370FM is an RG series solid body electric guitar model introduced by Ibanez in 2003. It was made in China as a part of the affordable GIO line.

The GRG370FM features a flamed maple top on a basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with white dot position markers. Components include Ibanez pickups with a pair of humbuckers flanking a single-coil and a double locking tremolo. Originally it was equipped with an ILT1 tremolo, in 2005 it was replaced with the new Edge III.

The GRG370FM was discontinued after 2005.

Specifications

Specifications for GRG370FM
Year(s) produced: 2003–2005
Sold in: Japan / USA
Made in: China
Finish(es): Autumn Leaf (AL) 2005 / Transparent Blue (TB) / Transparent Black (TK) 2003–2004 / Transparent Red (TR) 2004
Body
Body type:
Solid body
Body material:
Basswood w/ flamed maple top
Neck joint:
AANJ
Bridge:
2003–2004: ILT1 tremolo
2005: Edge III tremolo
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
GRG
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
Locking (42mm)
Machine heads:
Ibanez die-cast
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez STD-H2 (H)
Middle pickup:
Ibanez STD-S4 (S)
Neck pickup:
Ibanez STD-H1 (H)
Controls:
Master volume / master tone / 5-way lever

Images

Additional finishes/ details

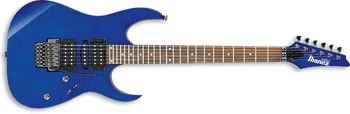

GRG370FM TB
Transparent Blue
GRG370FM TK
Transparent Black
GRG370FM TR
Transparent Red
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
