For other models in the RG270 lineage, see RG270 (disambiguation).
2021 GRG270 CA 3H 05
GRG270 Candy Apple (more images) Red copyright sprite

The GRG270 is an RG series solid body electric guitar model introduced by Ibanez for 2021. It was made in China as part of the entry-level GIO line. An earlier version was discontinued in 2018.

It is among the most affordable RG models featuring a double locking tremolo. It features a basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with white dot position markers. Components include Ibanez Infinity R pickups with a pair of humbuckers mounted in pickup rings flanking a single-coil, an Edge III tremolo, and Ibanez die-cast tuning machines.

The GRG250P is a similar model with a pickguard.

This GRG270 was discontinued after 2022.

Specifications[]

Related content: GIO series | RG series | Models-icon
Specifications for GRG270 (2021–2022)
Model name: GRG270 (2021–2022)
Year(s) offered: 2021—2022
Sold in: China
Made in: China
Finish(es): Black Night (BKN) / Candy Apple (CA) / Pearl White (PW) 2021
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge III tremolo
Knob style:
Plastic dome
Hardware color:
Black
Neck
Neck type:
GRG
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / large nickel silver
Nut:
Locking
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Ibanez Infinity R bridge (H) passive/ ceramic
Middle pickup:
Ibanez Infinity RS middle (S) passive/ ceramic
Neck pickup:
Ibanez Infinity R neck (H) passive/ ceramic
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other finishes

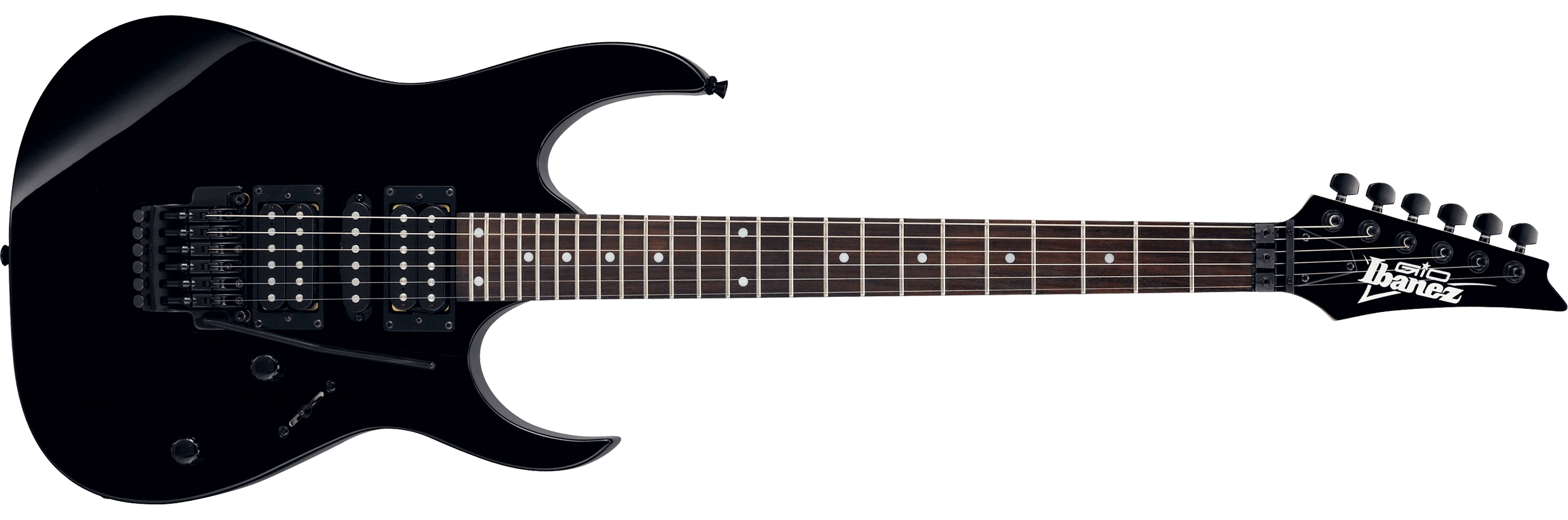

2021 GRG270 BKN 3H 05
Black Night

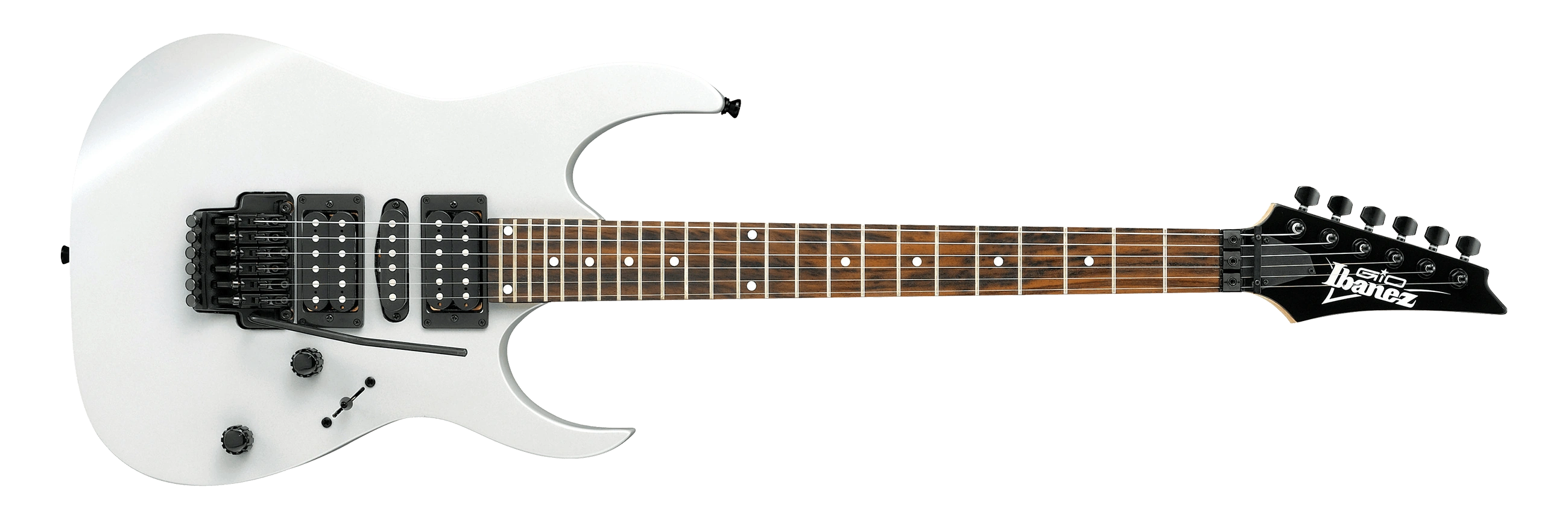

2021 GRG270 PW 3R 05
Pearl White
Additional details
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
