GRG270DX SBB

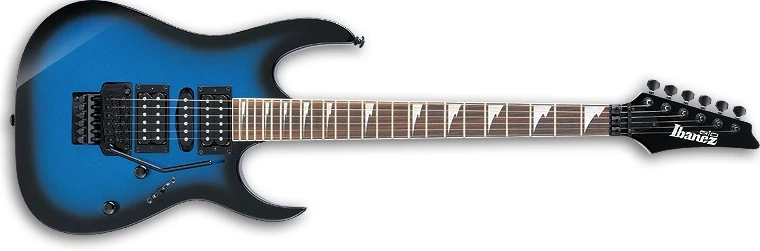

GRG270DX Steel Blue Burst (more images) Red copyright sprite

The GRG270DX is an RG series solid body electric guitar model introduced by Ibanez in 2003. It was made in China as part of the entry-level GIO line.

Features of the GRG270DX include a basswood body, sharktooth fretboard inlays, Ibanez pickups and a double locking tremolo bridge.

The GRG270DX is similar to the GRG270 and GRG270B, which both have standard dot inlays. The GRG270DXFM is also similar except for its flamed maple top.

The GRG270DX was discontinued after 2010, but was brought back in 2016 in China and Southeast Asia. It was again discontinued after 2017.

Specifications

Specifications for GRG270DX
Model name: GRG270DX
Year(s) produced: 2003–2010, 2016–2017
Sold in: Asia (excl. Japan) / North & South America and Oceania 2003–2006 only / USA 2003–2005 only
Made in: China
Finish(es): Black (BK) 2003 / Black Night (BKN) 2016–2017 / Deep Violet Metallic (DVM) 2016–2017 / Metallic Black (MBK) 2004 / Navy Metallic (NM) 2004–2010 / Steel Blue Burst (SBB) 2006–2010 / Silver (SV) 2003–2005
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
2003–2010: ILT1 tremolo
2016–2017: Edge III tremolo
Hardware color:
Black
Neck
Neck type:
GRG1
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
2003: Rosewood
2004–2010, 2016–2017: Rosewood w/ binding
Fingerboard inlays:
Sharktooth
Frets:
2003–2010: 24 / medium
2016–2017: 24 / jumbo
Nut:
Locking
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
2003–2010: Ibanez STD-H2 (H)
2016–2017: Ibanez Infinity R (H)
Middle pickup:
2003–2010: Ibanez STD-S4 (S)
2016–2017: Ibanez Infinity RS (S)
Neck pickup:
2003–2010: Ibanez STD-H1 (H)
2016–2017: Ibanez Infinity R (H)
Controls:
Master volume / master tone / 5-way lever
String gauge (factory):
.009–.042

Images

Gallery

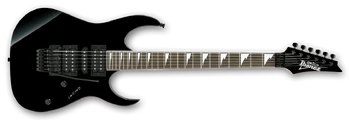

Black
2016 GRG270DX BKN
Black Night

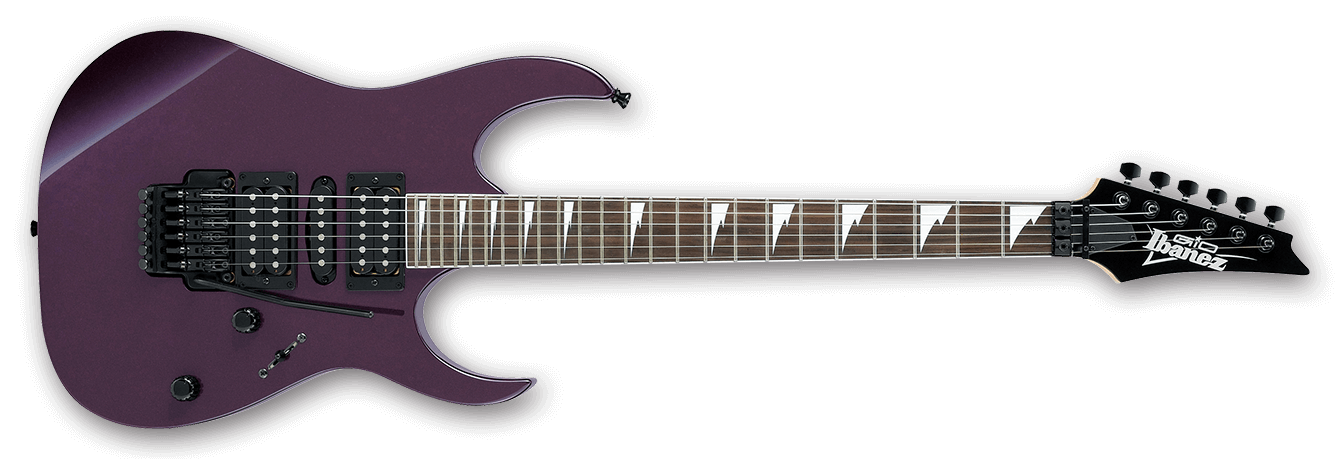

2016 GRG270DX DVM
Deep Violet Metallic

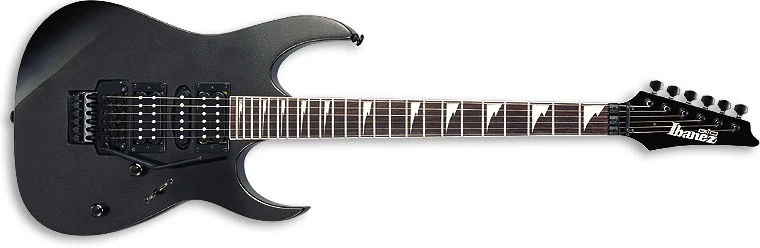

GRG270DX MBK
Metallic Black
GRG270DX NM
Navy Metallic
Silver
Wimage An image for this article is missing!
An image of the GRG270DX Black and GRG270DX Silver is wanted for this article. You can help by finding, uploading and adding it!
