GRG270B BKN

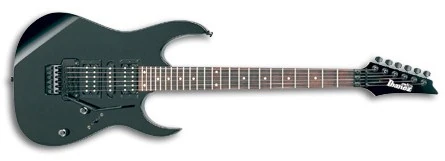

GRG270B Black Night (more images) Red copyright sprite

The GRG270B is an RG series solid body electric guitar model introduced by Ibanez for 2004. It was made in Indonesia as part of the entry-level GIO line.

The GRG270B features a basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with dot position markers. Components include Ibanez Powersound pickups with a pair of humbuckers mounted in pickup rings flanking a single-coil, an ILT1 double locking tremolo bridge and Ibanez tuning machines.

For 2007 the bridge was changed to the Edge III. It was again changed to the Standard DL tremolo in 2013.

The GRG270 is a similar model which was made in China and can be distinguished by its fretboard binding.

The GRG207B was discontinued after 2014.

Specifications[]

Related content: GIO series | RG series | Models-icon
Specifications for GRG270B
Model name: GRG270B
Year(s) offered: 2004–2014
Sold in: Europe
Made in: Indonesia
Finish(es): Black (BK) 2004 / Black Night (BKN) 2005–2014 / Jewel Blue (JB) 2004–2008 / Light Purple Metallic (LPM) 2009–2010
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
2004–2006: ILT1 tremolo
2007–2012: Edge III tremolo
2013–2014: Standard DL tremolo tremolo
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
GRG2
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
Locking
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Ibanez Powersound 2 (H)
Middle pickup:
Ibanez Powersound Single (S)
Neck pickup:
Ibanez Powersound 1 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes/ details

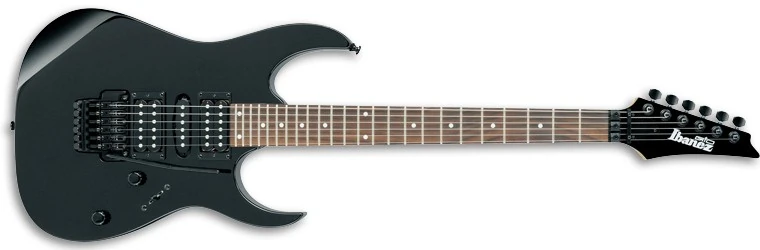

GRG270B BK
Black
GRG270B JB
Jewel Blue

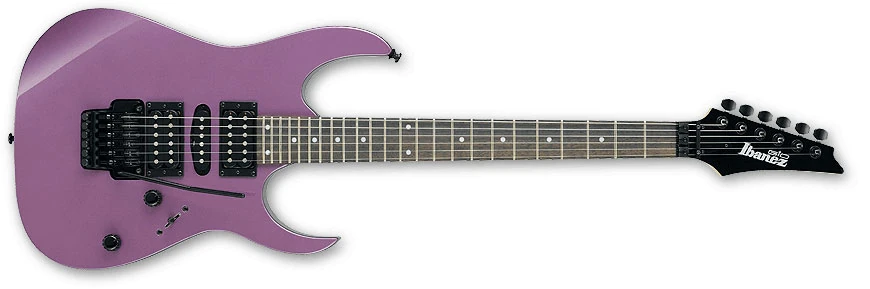

GRG270B LPM
Light Purple Metallic
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
