For the more recent model with the same name, see GRG255DX (2021–2022).
2016 GRG255DX BKN

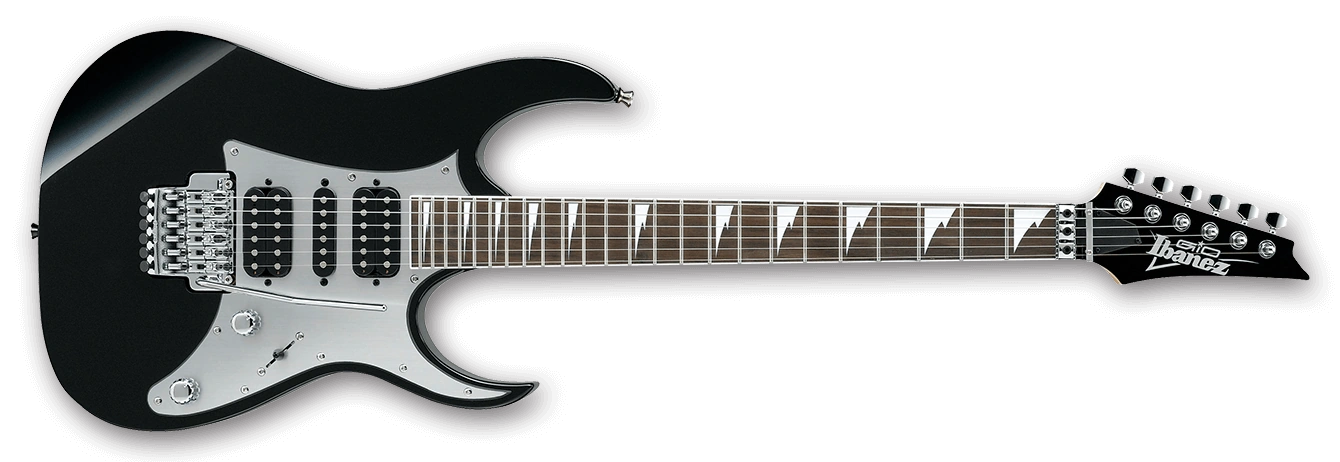

GRG255DX Black Night (more images) Red copyright sprite

The GRG255DX is an RG series solid body electric guitar model introduced by Ibanez for 2016. It was made in China as part of the entry-level GIO line.

The GRG255DX is among the most affordable RG models with a double locking tremolo bridge. Other features include a basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with binding and sharktooth position markers and Ibanez Infinity R pickups mounted in an aluminum pickguard with a pair of humbuckers flanking a single-coil.

Several changes were introduced for 2018 including a poplar body, treated New Zealand pine fretboard and the Standard DL tremolo.

A similar model with dot inlays and a black pickguard, the GRG250P, has been produced since 2009. Another similar model with a maple fretboard and dot inlays, the GRG250M, was introduced in 2014.

The GRG255DX was discontinued in 2019.

Specifications[]

Related content: GIO series | RG series | Models-icon
Specifications for GRG255DX (2016–2019)
Model name: GRG255DX (2016–2019)
Year(s) offered: 2016–2019
Sold in: Asia 2016–2018 / China
Made in: China
Finish(es): Black Night (BKN) / Candy Apple (CA) / Silver (SV)
Body
Body type:
Solid body
Body material:
2016–2017: Basswood
2018–2019: Poplar
Neck joint:
AANJ
Bridge:
2016–2017: Edge III tremolo
2018–2019: Standard DL tremolo
Pickguard:
Aluminum
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
GRG
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
2016–2017: Rosewood w/ binding
2018–2019: Treated New Zealand pine w/ binding
Fingerboard inlays:
White sharktooth
Frets:
24 / jumbo
Nut:
Locking
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Ibanez Infinity R (H) passive/ ceramic
Middle pickup:
Ibanez Infinity RS (S) passive/ ceramic
Neck pickup:
Ibanez Infinity R (H) passive/ ceramic
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes/ details

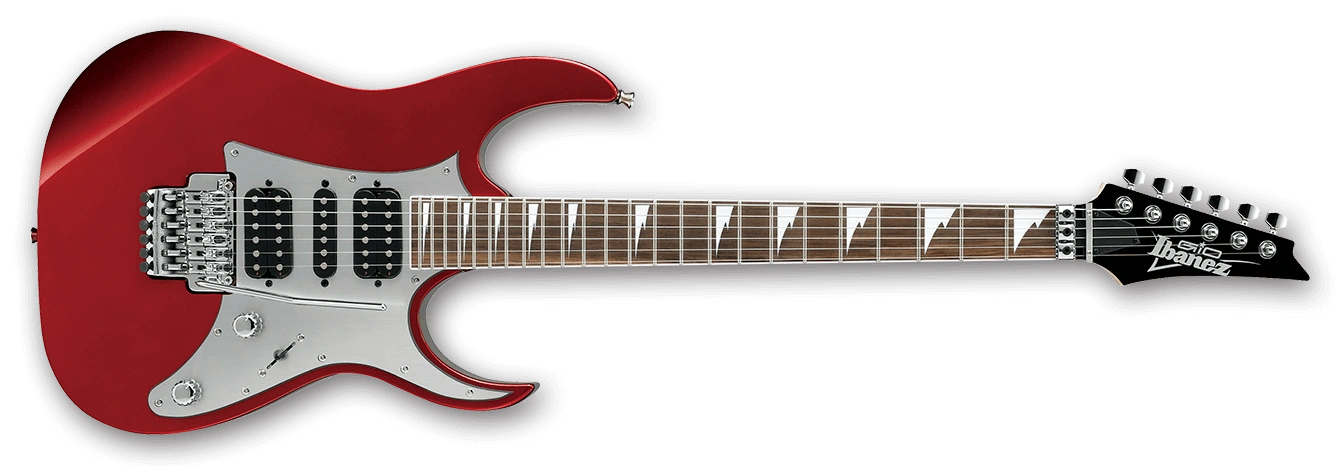

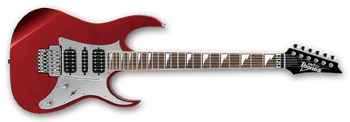

2016 GRG255DX CA
Candy Apple (2016)

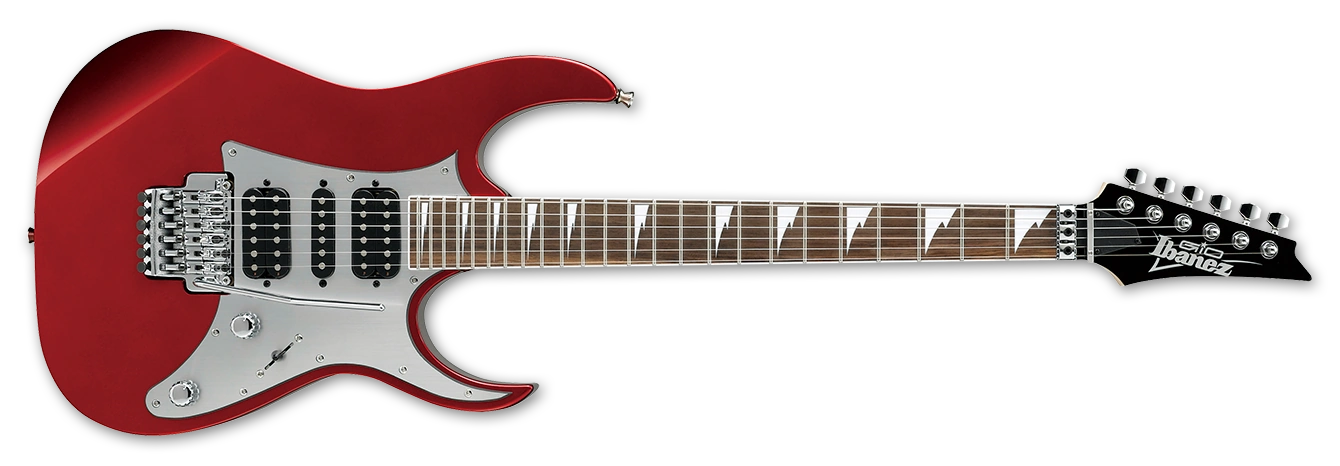

2018 GRG255DX CA 3R 01
Candy Apple (2018)

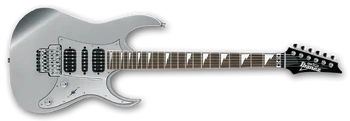

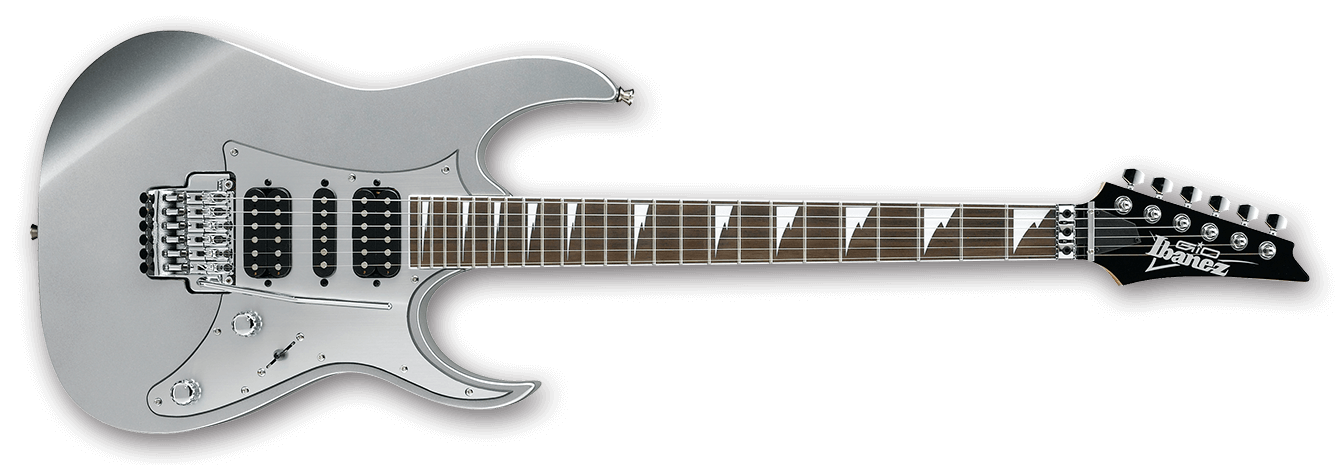

2016 GRG255DX SV
Silver
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
