GRG170M BKN
GRG170M Black Red copyright sprite

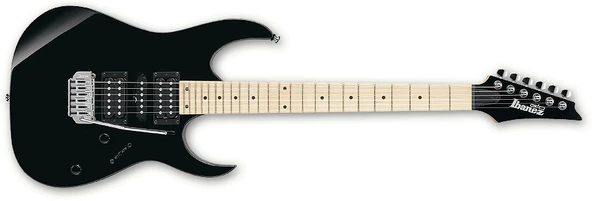

The GRG170M is an RG series solid body electric guitar model offered by Ibanez in 2009. It was made in Indonesia as part of the affordable GIO line and is a spot model which was part of the 2009 Ibanez Limited Edition Vol. 1 series.

The GRG170M features a basswood body bolted to a maple neck with a 24-fret maple fingerboard with dot position markers. Components include a synchronized tremolo bridge and Ibanez Powersound pickups.

The GRG170DX is a similar regular production model which has a rosewood fretboard with sharktooth inlays.

The GRG170M was discontinued after 2009.

Specifications

Specifications for GRG170M
Year(s) produced: 2009
Sold in: Europe
Made in: Indonesia
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
FAT-10 tremolo
Knob style:
PLastic dome (black)
Hardware color:
Chrome
Neck
Neck type:
GRG1
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Black dot
Frets:
24 / medium
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez PSND2 (H)
Middle pickup:
Ibanez PSNDS (S)
Neck pickup:
Ibanez PSND1 (H)
Controls:
Master volume / master tone / 5-way lever

Images

Additional details

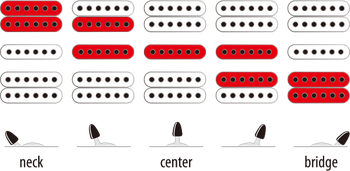

HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
