GRG170DXFM

For other models in the RG170 lineage, see RG170 (disambiguation).

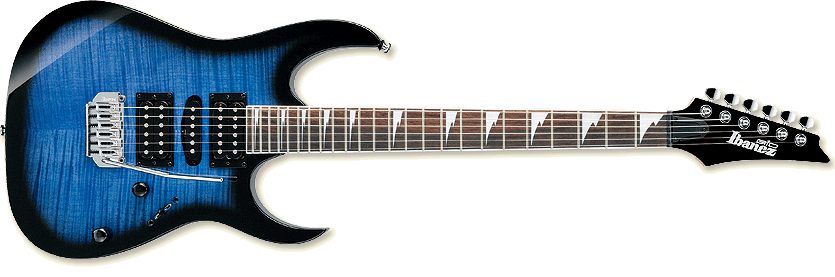

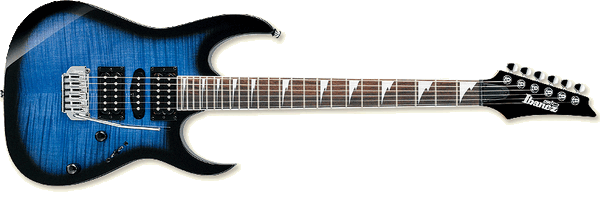

GRG170DXFM Transparent Blue Sunburst (more images)

The GRG170DXFM, also known as the GRG170F, is an RG series solid body electric guitar model offered by Ibanez in 2008.

The GRG170DXFM features a basswood with flamed maple top bolted to a maple neck with a 24-fret bound rosewood fingerboard with sharktooth position markers. Components include a synchronized tremolo bridge and Ibanez Powersound pickups.

The GRG170DXFM was sold exclusively in Japan and was discontinued after 2009.

Specifications

Related content: RG series | GIO series |

Specifications for GRG170DXFM; GRG170F

Model name: GRG170DXFM; GRG170F Year(s) offered: 2008–2009 Sold in: Japan Made in: China Finish(es): TBS (Transparent Blue Sunburst) / TGS (Transparent Gray Sunburst) / TRS (Transparent Red Sunburst)
Body Body type: Solid body Body material: Basswood w/ flamed maple top Neck joint: AANJ Bridge: FAT-10 tremolo Hardware color: Chrome	Neck Neck type: GRG Neck material: 1-piece maple Fingerboard material: Rosewood w/ binding Fingerboard inlays: Sharktooth Frets: 24 / medium	Electronics Pickup configuration: HSH Bridge pickup: Ibnaez PSND2 (H) Middle pickup: Ibanez PSNDS (S) Neck pickup: Ibanez PSND1 (H) Controls: Master volume / master tone / 5-way lever pickup selector

About this table

Images

Other available finishes

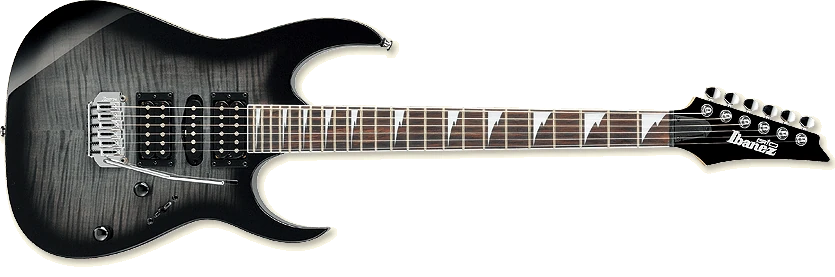

Transparent Gray Sunburst

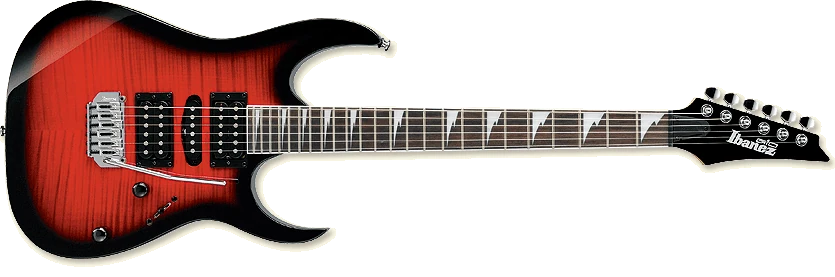

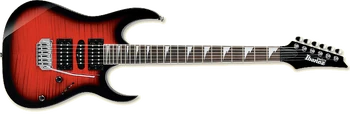

Transparent Red Sunburst
