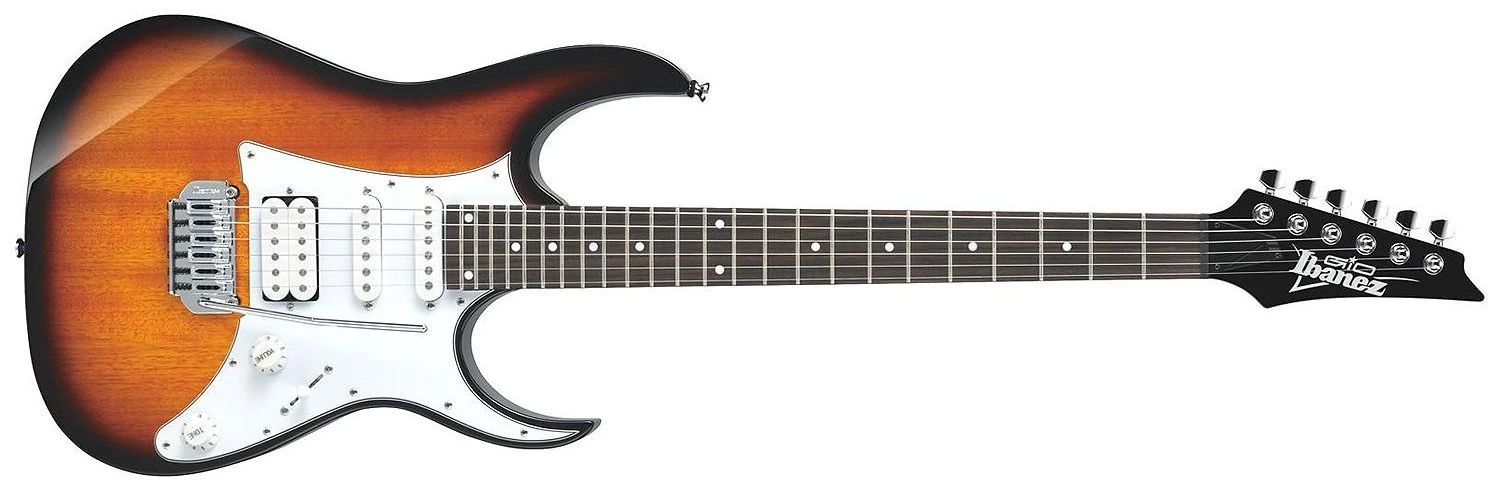

GRG140 SB.jpg
GRG140 Sunburst (more images) Red copyright sprite.png

The GRG140 is an RG series solid body electric guitar model introduced by Ibanez in 2012. It is part of the entry-level GIO line which is produced in Indonesia.

The GRG140 features a non-locking synchronized tremolo bridge and Ibanez pickups in an HSS configuration. The parts specifications where significantly changed in 2013 and again in 2015.

In mid-2017 a new fretboard material, treated New Zealand pine, replaced rosewood.[1] For 2019 the T102 tremolo replaced the FAT-10 and the body was made of poplar. For 2020 the fretboard was changed to purpleheart.

This model was available exclusive in the European market through 2018; for 2019 it was rolled out to the North & South America and Oceania market.

Specifications

Specifications for GRG140
Model name: GRG140
Year(s) produced: 2012–2021
Sold in: Asia 2019–2021 / Europe / North & South America and Oceania 2019–2021
Made in: Indonesia
Finish(es): Black Night (BKN) 2012–2018 / Sunburst (SB) / White (WH) 2014–2017, 2019–2021
Body
Body type:
Solid body
Body material:
2012: Mahogany
2013–2014: Basswood
2015–2018: Basswood (BKN & WH)/ Mahogany (SB)
2019–2021: Poplar (WH) / Okoume (SB)
Neck joint:
AANJ
Bridge:
2012–2018: FAT-10 tremolo
2019–2021: Ibanez T102 tremolo (10.5mm string spacing)
Pickguard:
3-ply: white/ black/ white
Knob style:
Plastic top hat (white)
Hardware color:
Chrome
Neck
Neck type:
GRG
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
2012–2017: Rosewood
2017–2019: Treated New Zealand pine
2020–2021: Purpleheart
Fingerboard inlays:
White dot
Frets:
2012: 24 / medium
2013–2021: 24 / jumbo
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
2012: Ibanez STD-H2 (H)
2013–2014: Ibanez PSND (H)
2015–2021: Ibanez Infinity R (H) passive/ ceramic
Middle pickup:
2012: Ibanez STD-S (S)
2013–2014: Ibanez PSND (S)
2015–2021: Ibanez Infinity RS (S) passive/ ceramic
Neck pickup:
2012: Ibanez STD-S (S)
2013–2014: Ibanez PSND (S)
2015–2021: Ibanez Infinity RS (S) passive/ ceramic
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

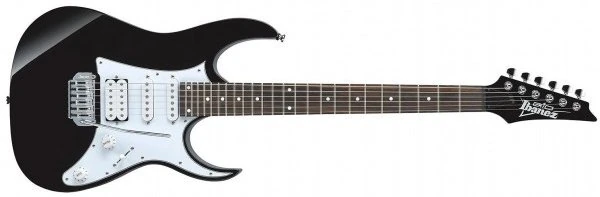

GRG140 BKN.jpg
Black Night

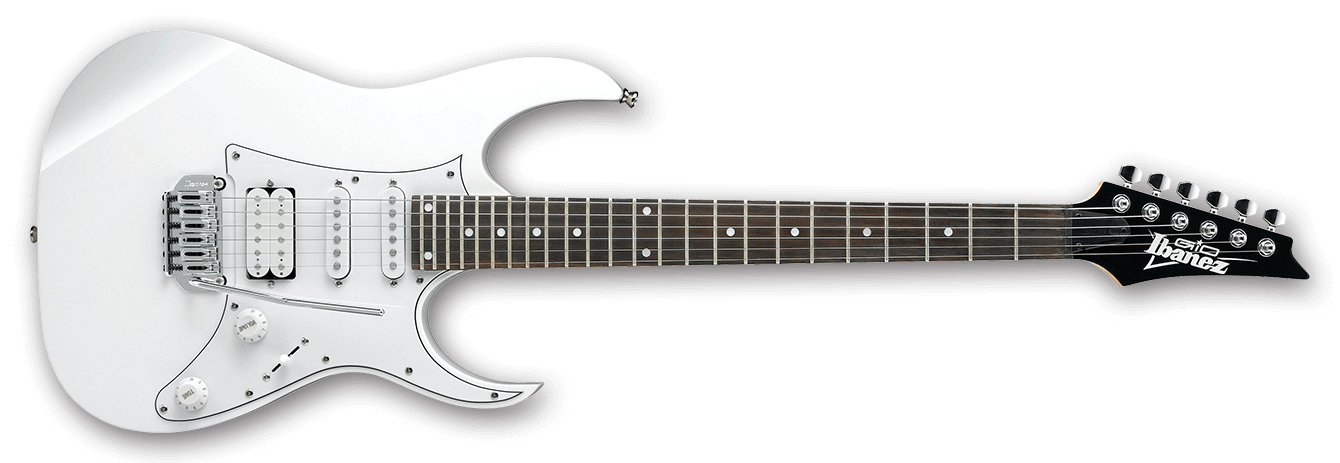

GRG140 WH.png
White
HSH 5-way both-splits.png
Pickup switching
Controls VT5.png
Control layout

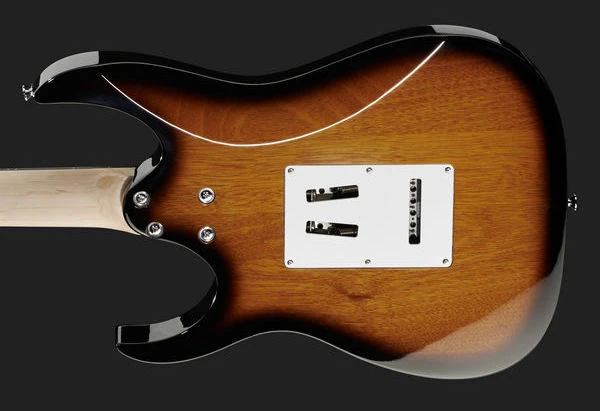

2020 GRG140 SB back.jpg
Rear of body

Sources

  1. GRG140 product page, Ibanez Europe, archived November 2017
