1992 GB12 BS
GB12 Brown Sunburst Red copyright sprite

The GB12 is a hollow body electric guitar model introduced by Ibanez in 1990. It is a signature model for American jazz guitarist George Benson. It is made in Japan by FujiGen.

The GB12 was released to commemorate the twelfth anniversary of the introduction of the first George Benson signature guitar, the GB10. The body of the GB12 is a half inch thicker than the GB10 and it has a special 12th anniversary headstock inlay.

The GB12 features a smallish, single cutaway, full hollow body design with a laminated flamed maple top with ƒ holes and multi-layer binding on flamed maple back and sides mated to a set-in three-piece maple and mahogany neck with a large headstock and a 22-fret ebony fingerboard with binding and pearl and abalone decorative position markers. Components include dual, floating Ibanez GB special humbucking pickups with individual volume and tone controls; a height-adjustable ebony bridge with special adjustable split trapeze tailpiece; a bone and brass nut; a flamed maple pickguard finished to match the body; Sure Grip II knobs; and Gotoh tuning machines. Each GB12 is numbered and personally autographed by Benson.

The GB12 was discontinued after 1992.

Specifications

Specifications for GB12
Year(s) produced: 1990–1992
Sold in: Worldwide
Made in: Japan
Finish(es): Brown Sunburst (BS)
Body
Body type:
Hollow body
Dimensions:
  Length: 479mm / 18⅞"
  Width: 375mm / 14¾"
  Depth: 98mm / 3⅞"
Top:

  Material: Flamed maple (laminated)
  Binding: Multi-layer cream/black

Back/sides:

  Material: Flamed maple (laminated)

Neck joint:
Set-in
Bridge:
Ebony w/ ebony saddle (10.4mm string spacing)
Tailpiece:
GB12 original
Pickguard:
Tortoise
Knob style:
Sure Grip II
Hardware color:
Gold
Neck
Neck type:
GB12
Neck material:
3-piece maple/ mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Acrylic/pearl and abalone decorative
Frets:
22 / medium
Nut:
Bone (43mm)
Machine heads:
Gotoh SG38
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez GB special bridge (H) passive/alnico
Neck pickup:
Ibanez GB special neck (H) passive/alnico
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" stereo box
String gauge (factory):
.011/.015/.022w/.030/.040/.050 flatwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls GB10
Control layout

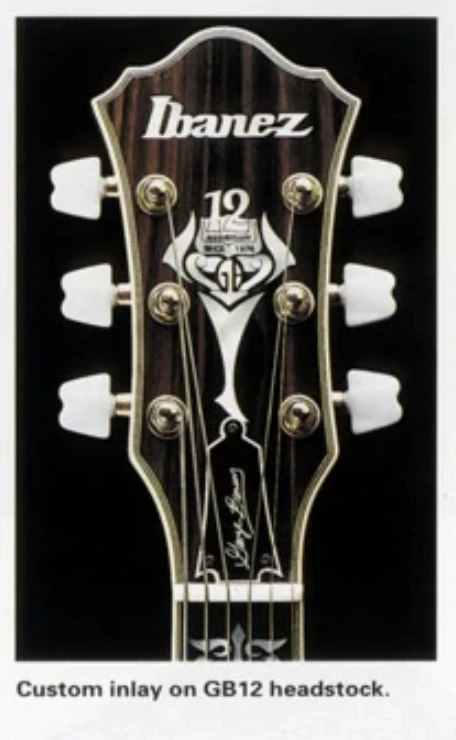

1992 GB12 headstock-inlay
Headstock inlay detail

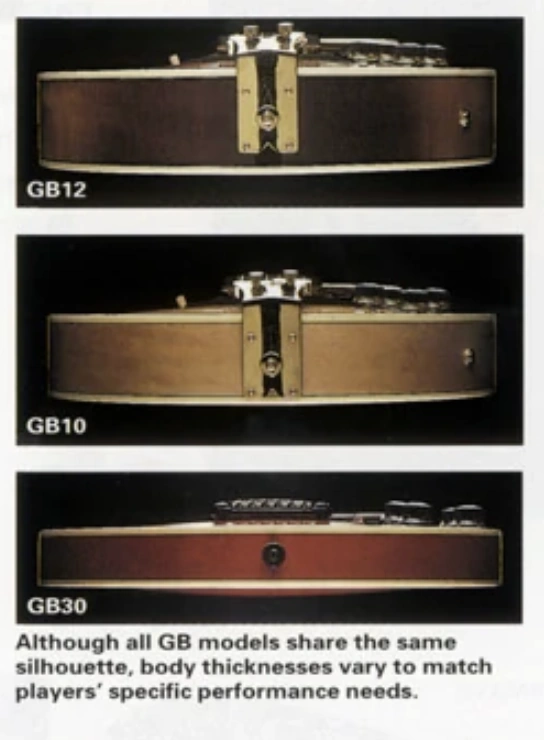

GB10 GB30 GB12 size-comparison
Size comparison between, GB12 (top), GB10 (middle) and GB30 (bottom)
