2019 GB10SE BS 5B 01
GB10SE Brown Sunburst Red copyright sprite

The GB10SE is a hollow body electric guitar model introduced by Ibanez for 2016. It is a signature model for American jazz guitarist George Benson. It is essentially a less expensive version of Benson's iconic GB10. It was initially made in China, but production moved to Indonesia in mid-2018.

The GB10SE features a smallish, single cutaway, full hollow body design constructed of a laminated spruce top with ƒ holes and multi-layer binding on laminated maple sides and back. The set-in three-piece maple neck sports a large headstock and a 22-fret ebony fingerboard with binding and pearl/acrylic and abalone split block position markers. Components include a pair of floating Ibanez GB special humbucking pickups with individual volume and tone controls, a height-adjustable ebony bridge, a special adjustable split trapeze tailpiece, a bone and brass nut, and a tortoise pickguard.

For 2019 the wood species for the back and sides was changed from maple to linden; it was changed back to maple the following year.

The GB10SEFM is a related model with flamed maple construction.

Specifications[]

Specifications for GB10SE
Model name: GB10SE
Year(s) offered: 2016–2026
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA & Canada
Made in: China (2016–2018) / Indonesia (2018–2026)
Price: MSRP: US$1,733.32 (2016–2017)[1][2] / ¥ 250,000 pre-tax (2024–2025)[3][4] / 1,549 (2024)[5] / US$1,866.65 (2025)[6] / US$1,999.99 (2025)[7] / ¥ 275,000 pre-tax (2026)[8] • SMAP: US$1,299.99 (2017)[2] / US$1,399.99 (2022–2025)[9][6] / US$1,499.99 (2025)[7]
Finish(es): Brown Sunburst (BS)
Body
Body type:
Hollow body
Dimensions:
  Length: 479mm / 18⅞"
  Width: 368mm / 14½"
  Depth: 92mm / 3⅝"
Top:
  Material: Spruce (laminated)
  Finish: Gloss
  Binding: Multi-layer cream/black
Back/sides:
  Material: 2016–2018: Maple (laminated)
                2019: Linden (laminated)
                2020–2026: Maple (laminated)
  Finish: Gloss
Neck joint:
Set-in
Bridge:
Ebony (10.4mm string spacing)
Tailpiece:
GB10
Strap buttons:
16mm metal button w/ black felt washer
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
GB10SE
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Acrylic & abalone split block
Frets:
22 / medium nickel silver (Artstar edge treatment)
Nut:
Half & Half nut (43mm)
Machine heads:
Ibanez die-cast
String gauge (factory):
2016–2024: .011/.015/.022w/.030/.040/.050 flatwound
2025–2026 .011/.015/.022w/.030/.040/.050 (D'Addario ECG24 Chromes flatwound)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics/ case
Pickup configuration:
HH
Bridge pickup:
Ibanez GB special bridge (H) passive/alnico
Neck pickup:
Ibanez GB special neck (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Recommended gig bag:
ICB540
Included case:
yes

Images[]

Additional details

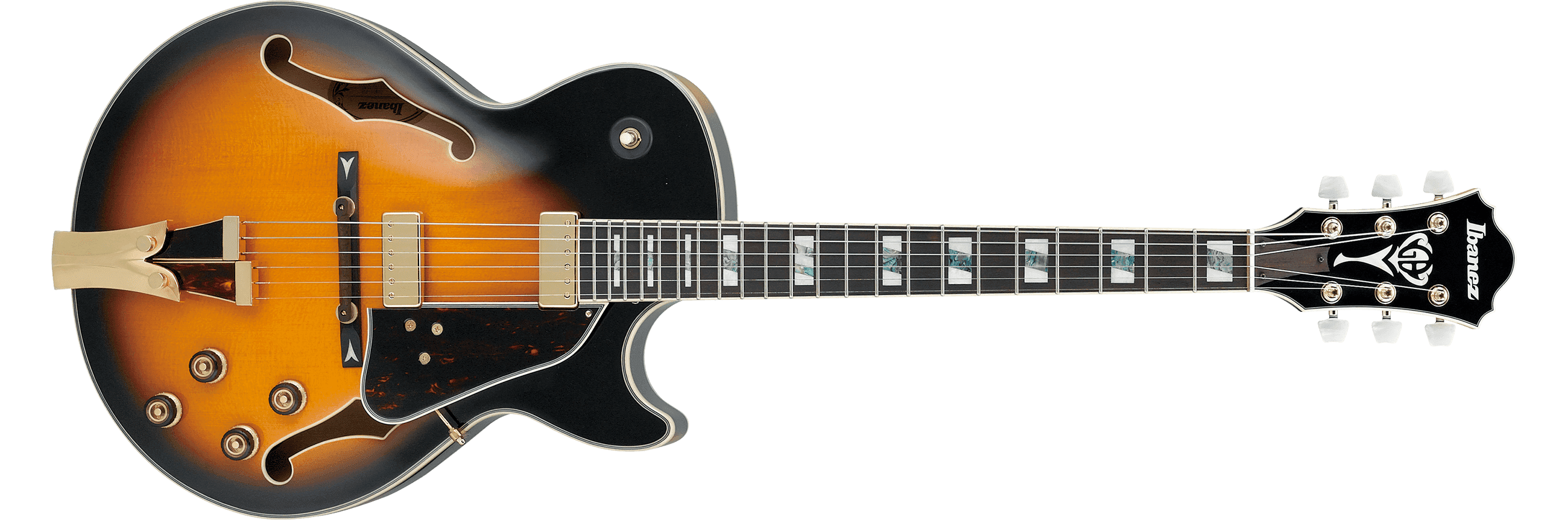

2021 GB10SE BS 5B 03 front
Front of body

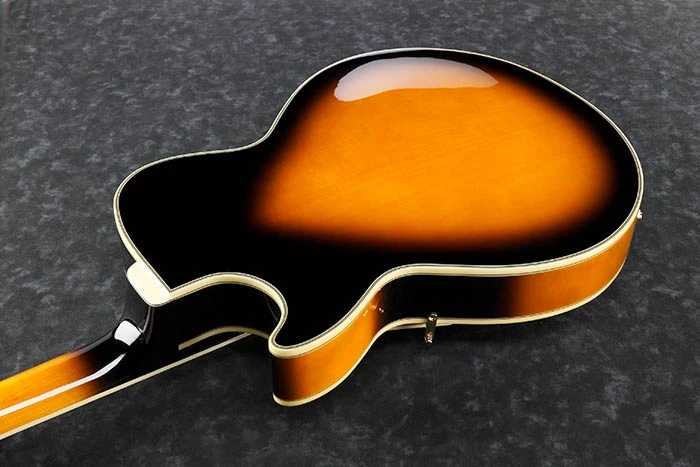

2021 GB10SE BS 5B 03 back
Rear of body
HH 3-way toggle
Pickup switching

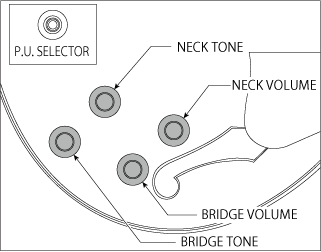

Controls GB10
Controls layout
