2006 GAX75 GP

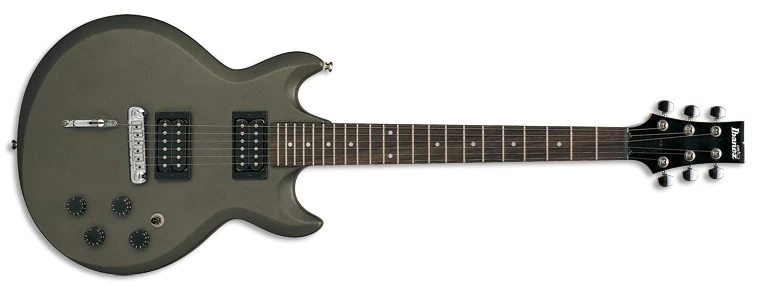

GAX75 Gray Pewter 2006 (more images) Red copyright sprite

The GAX75 is an AX series solid body electric guitar model introduced by Ibanez in 2001. It was made in Indonesia as part of the entry-level GIO line. It was also sold as a kit with a gig bag as the GAX75GB.

The GAX75 features an agathis body bolted to a maple neck with a 22-fret rosewood fingerboard with dot position markers. Components include a fixed bridge with an Ibanez Downshifter D-Tuner on the lowest string and dual Ibanez Powersound humbucking pickups with individual volume and tone controls.

The GAX70 is a similar model without the D-Tuner.

The GAX75 was discontinued after 2007.

Specifications

Specifications for GAX75
Year(s) produced: 2001–2007
Sold in: Europe / USA
Made in: Indonesia
Finish(es): Black (BK) 2002–2003 / Gray Pewter (GP)
Body
Body type:
Solid body
Body material:
Agathis
Neck joint:
Bolt-on
Bridge:
Short Stop II fixed w/ D-Tuner
Knob style:
Speed (black)
Hardware color:
Chrome
Neck
Neck type:
GAX
Neck material:
1-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
22 / medium
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Powersound 2 (H)
Neck pickup:
Ibanez Powersound 1 (H)
Controls:
2 volume / 2 tone / 3-way toggle
String gauge (factory):
.010–.046

Images

Additional finishes/ details
2003 GAX75 BK 1P 01
Black
2007 GAX75 GP
Gray Pewter 2007
HH 3-way toggle
Pickup switching diagram
Controls 2V2T3
Control layout
