For the earlier model with the same name, see GAX50 (2000–2005).

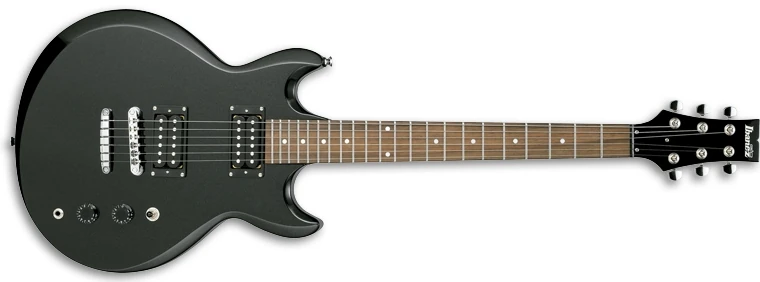

2006 GAX50 BKN 27 01
GAX50 Black Night (more images) Red copyright sprite

The GAX50 is an AX series solid body electric guitar model introduced by Ibanez in mid-2006. It was made in China as part of the entry-level GIO line. It may have been sold (and perhaps was exclusively sold) as part of a Jumpstart package which would have included an amplifier and accessories. It replaced an earlier model with the same name.

The GAX50 features a basswood body bolted to a maple neck with a 22-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez humbucking pickups mounted in plastic pickup rings and a Tune-o-matic style fixed bridge with tailpiece. This GAX50 is the only AX model with a front-mounted output.

This GAX50 was discontinued after 2011.

Specifications

Specifications for GAX50 (2006–2011)
Year(s) produced: 2006–2011
Sold in: USA
Made in: China
Finish(es): Black Night (BKN) / Metallic Silver Sunburst (MSS) / White (WH)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Bolt-on
Bridge:
Full Tune III fixed
Tailpiece:
Quik Change Mini
Pickguard:
Black
Knob style:
Speed (black)
Hardware color:
Chrome
Neck
Neck type:
GAX
Neck material:
1-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearloid dot
Frets:
22 / medium
Nut:
Black plastic (43mm)
Machine heads:
Ibanez covered
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez STD-H2 (H)
Neck pickup:
Ibanez STD-H1 (H)
Controls:
Master volume / master tone / 3-way lever

Images

Additional finishes/ details

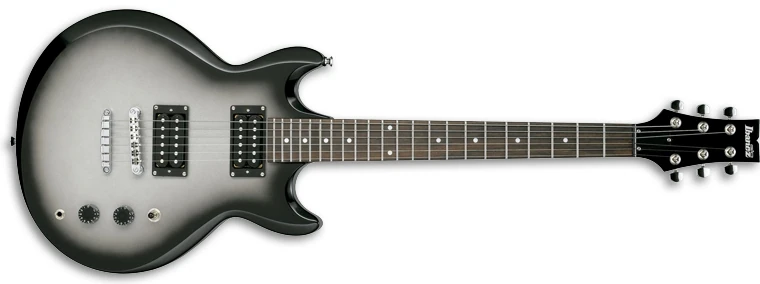

2006 GAX50 MSS 27 01
Metallic Silver Sunburst

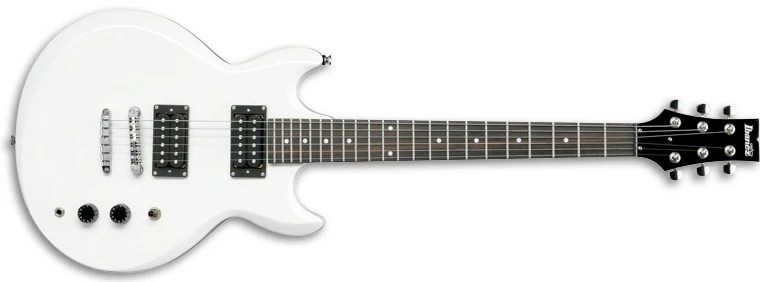

2006 GAX50 WH 27 01
White
HH 3-way toggle
Pickup switching diagram
