GART60FA

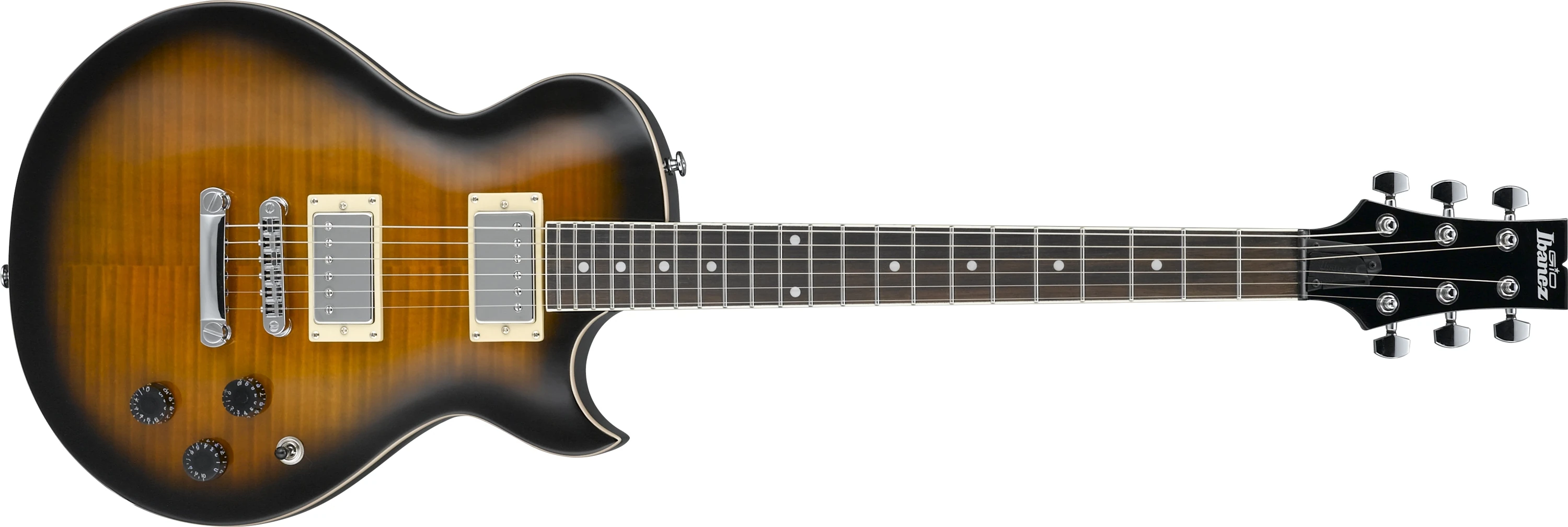

GART60FA Sunburst (more images)

The GART60FA is an ART series solid body electric guitar model introduced by Ibanez in mid 2015. It is produced in China as part of the affordable GIO line.

The GART60FA features an art grain flamed maple top on a poplar body with bolted to a maple neck, Ibanez Classic Elite pickups and a Full Tune III bridge and tailpiece.

In mid-2017 a new fretboard material, treated New Zealand pine, replaced rosewood.

The GART60 is a similar model which lacks the art grain top and uses different pickups. These two are the only ART guitar in the GIO line with an arched top; the other GIO ART models have a crystal-cut body.

The GART60FA was discontinued after 2018.

Specifications

Related content: GIO series | ART series | Artist series |

Specifications for GART60FA

Year(s) offered: 2015–2018 Sold in: Europe / North & South America and Oceania / USA Made in: China Finish(es): Cherry Red Sunburst (CRS) 2016 / Sunburst (SB)
Body Body type: Solid body Body material: Poplar w/ flamed maple art grain top Neck joint: Bolt-on Bridge: Full Tune III fixed Tailpiece: Full Tune III Knob style: Speed knobs (black) Hardware color: Chrome	Neck Neck type: GART Neck material: 1-piece maple Scale length: 628mm/ 24¾" Fingerboard material: 2015–2017: Rosewood w/ binding 2017–2018: Treated New Zealand pine w/ binding Fingerboard inlays: White dot Frets: 22 / medium Machine heads: Ibanez die-cast	Electronics Pickup configuration: HH Bridge pickup: Ibanez Classic Elite (H) passive/ ceramic Neck pickup: Ibanez Classic Elite (H) passive/ ceramic Controls: Two volumes / master tone / 3-way toggle pickup selector

About this table

Images

Additional finishes/ details

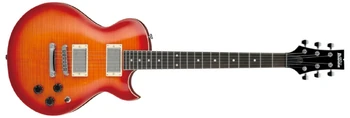

Cherry Red Sunburst

Pickup switching diagram

Control layout

Sources

• 2015 USA summer new product book (page 7)
• GART60FA product page, Ibanez USA, archived June 2016
• 2016 North America catalog (page 26)
• 2017 USA catalog (page 49)
