GART60 TFB

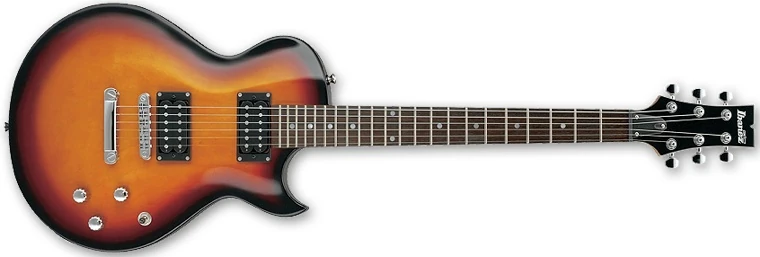

GART60 Tri Fade Burst (more images) Red copyright sprite

The GART60 is an ART series single cutaway solid body electric guitar model introduced in 2010 by Ibanez as part of the affordable GIO line. It was produced in China.

The GART60 features a basswood body bolted to a maple neck with a 22-fret fingerboard with dot position markers. Components include dual Ibanez humbucking pickups and a Full Tune III Tune-O-Matic style bridge.

The GART60 is the only ART guitar in the GIO line which has an arched top other than the GART60FA. All other GIO ARTs have a crystal-cut body.

In mid-2017 a new fretboard material, treated New Zealand pine, replaced rosewood.[1]

The GART60 was initially part of the 2010 Limited Edition series in Europe, but has been a part of the regular lineup since 2011. It was discontinued after 2019.

Specifications

Specifications for GART60
Year(s) produced: 2010–2019
Sold in: Worldwide (except Japan)
Made in: China
Finish(es): Black Night (BKN) 2010–2014 / Metallic Silver Sunburst (MSS) 2011 / Mustard (MST) 2017–2018[2] / Tri Fade Burst (TFB) 2010–2014 / Transparent Red Burst (TRB) 2012–2013 / Walnut Sunburst (WNS) 2014–2019
Body
Body type:
Solid body
Body material:
2010–2016: Basswood
2017–2019: Poplar
Neck joint:
Bolt-on
Bridge:
Full Tune III fixed
Tailpiece:
Full Tune III
Knob style:
Metal dome
Hardware color:
Chrome
Neck
Neck type:
GART
Neck material:
1-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
2010–2017: Rosewood
2017–2019: Treated New Zealand pine
Fingerboard inlays:
2010–2012: Pearl dot
2013–2019: White dot
Frets:
22 / medium
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
2010–2014: Ibanez STD-H2 (H)
2015–2019: Ibanez Infinity R (H)
Neck pickup:
2010–2014: Ibanez STD-H1 (H)
2015–2019: Ibanez Infinity R (H)
Controls:
2 volume / 1 tone / 3-way toggle
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

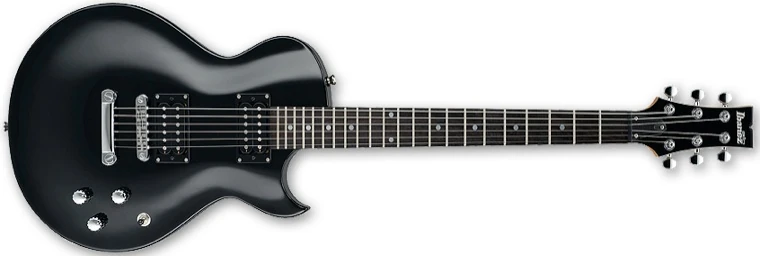

GART60 BKN
Black Night

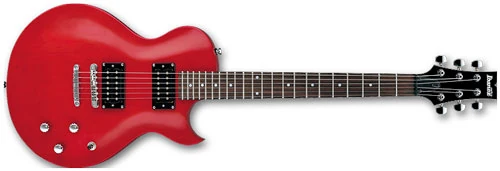

GART60 TR
Transparent Red

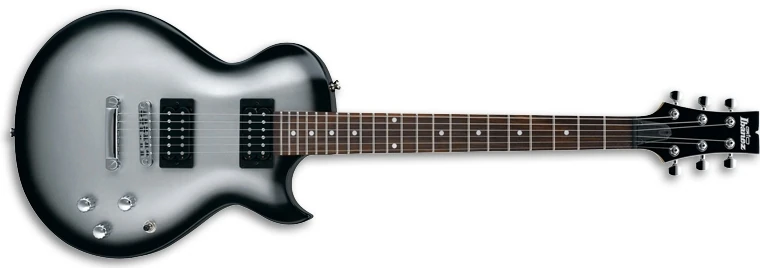

GART60 MSS
Metallic Silver Sunburst

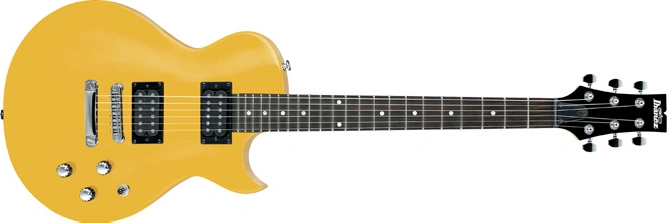

2017 GART60 MST
Mustard

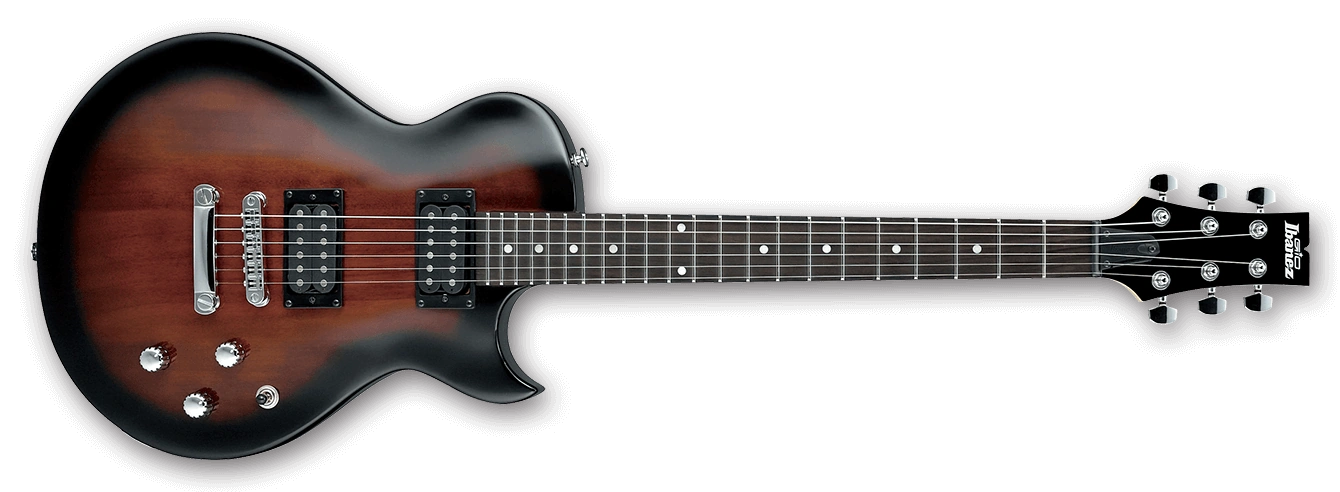

GART60 WNS
Walnut Sunburst
HH 3-way toggle
Pickup switching diagram

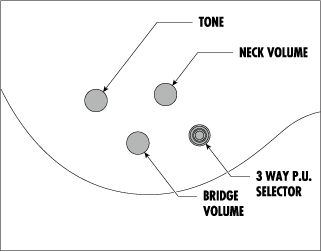

Controls 2VT3
Control layout

Sources

  1. GART60 product page, Ibanez USA, archived from the original November 2017
  2. 2017 USA summer new product catalog (page 3)
