For the more recent model with the same name, see GA3ECE.

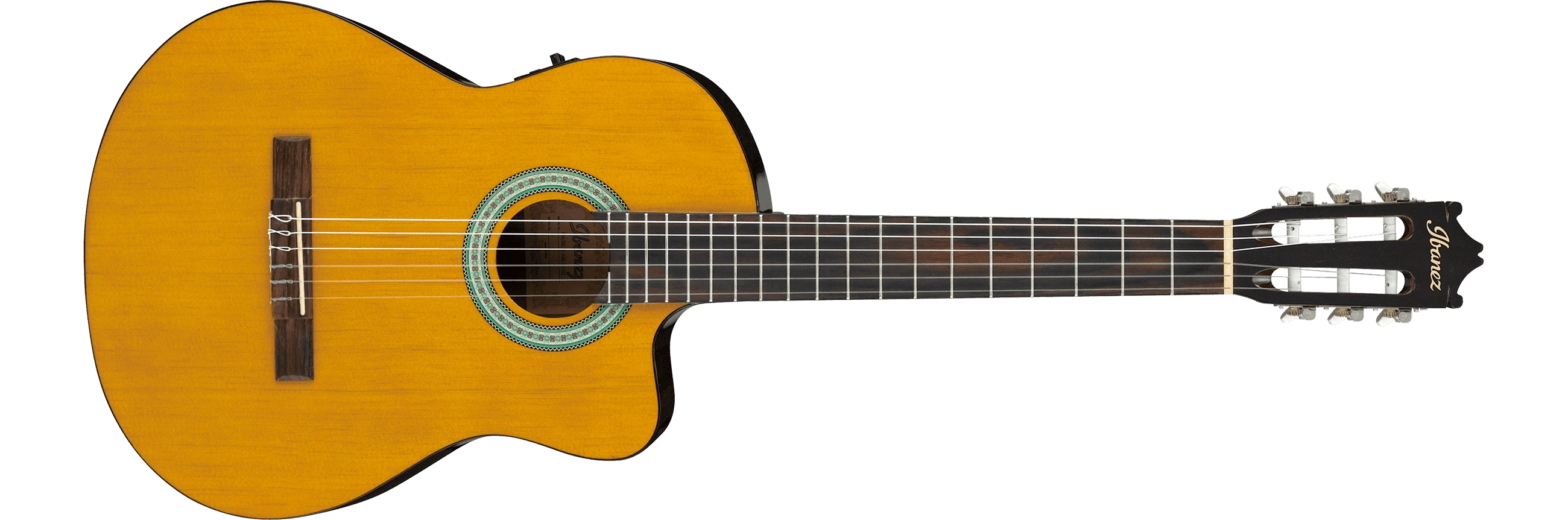

2019 GA3ECE AM 3U 05
GA3ECE Amber High Gloss Red copyright sprite

The GA3ECE is a GA series classical acoustic/ electric guitar model introduced by Ibanez in 2007. It was made in China. Until 2013 it was a spot model.

The GA3ECE features a classical body with a Venetian cutaway and a laminated spruce top on agathis back and sides with a gloss finish. The soundhole is round with a classical mosaic water slide decal. It has a mahogany neck with a 19-fret rosewood fingerboard. Components include an Ivorex II plastic saddle in a rosewood bridge, an Ivorex II nut, chrome classical tuning machines with pearl buttons and nylon strings. Electronics consist of an Ibanez under saddle pickup running into an AEQ200T preamp with an onboard tuner powered by a 9V battery and a ¼" stereo output.

For 2009 the back and sides were changed to catalpa. For 2010 the rosewood fretboard was replaced with black hardwood and the rosewood bridge was replaced with black dyed maple. For 2013 the fretboard and bridge reverted to rosewood and the nut and saddle were changed to ivory plastic. For 2016 the back and sides were changed back to agathis. For 2017 the preamp was replaced with the AEQ2T. For 2018 the rosewood fretboard was changed to ormosia and the rosewood fretboard was replaced with maple. For 2019 the fretboard was changed to nandu wood.

The GA3 is a similar standard acoustic model without the cutaway.

The GA3 was discontinued after 2019.

Specifications[]

Related content: GA series | Models-icon
Specifications for GA3ECE (2007–2019)
Year(s) offered: 2007–2019
Sold in: Asia / North & South America and Oceania
Made in: China
Finishes: Amber High Gloss (AM)
Body
Body type:
Acoustic
Body shape:
Classical w/ Venetian cutaway
Dimensions:
  Body length: 486mm/ 19⅛"
  Width: 375mm/ 14¾"
  Depth: 102mm/ 4"
Top:
  Material: Spruce (laminated)
  Bracing: Fan
  Finish: Gloss
  Binding: Black ABS
Back/sides:
  Material: 2007–2008: Agathis
                2009–2015: Catalpa
                2016–2019: Agathis
  Finish: Gloss
Soundhole shape:
Round
Soundhole rosette:
Classical mosiac design (water decal)
Neck
Neck profile:
GA
Neck material:
2007–2018: 1-piece mahogany
2019: 1-piece nyatoh
Scale length:
650mm/ 25.6"
Fingerboard:
2007–2009: Rosewood
2010–2012: Black hardwood
2013–2017: Rosewood
2018: Ormosia
2019: Nandu wood
Frets:
19
Nut:
2007–2012: Ivorex II (52mm)
2013–2019: Ivory plastic (52mm)
Machine heads:
Ibanez classical w/ pearl buttons
Electronics/ Components
Pickup:
Ibanez Undersaddle
Preamp:
2007–2016: Ibanez AEQ200T w/ onboard tuner
2017–2019: Ibanez AEQ2T preamp w/ onboard tuner
Output jack(s):
¼" stereo
Battery:
9V
Bridge:
2007–2009: Rosewood
2010–2012: Black dyed maple
2013–2017: Rosewood
2018–2019: Maple (11.6mm string spacing)
Saddle:
2007–2012: Ivorex II
2013–2019: Ivory plastic (80.72mm)
Hardware color:
Chrome
Strings (factory):
Nylon
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
AEQ200T preamp
AEQ200T preamp controls
Ibanez AEQ-2T diagram
AEQ2T preamp controls
