2019 GA35TCE DVS 5B 05

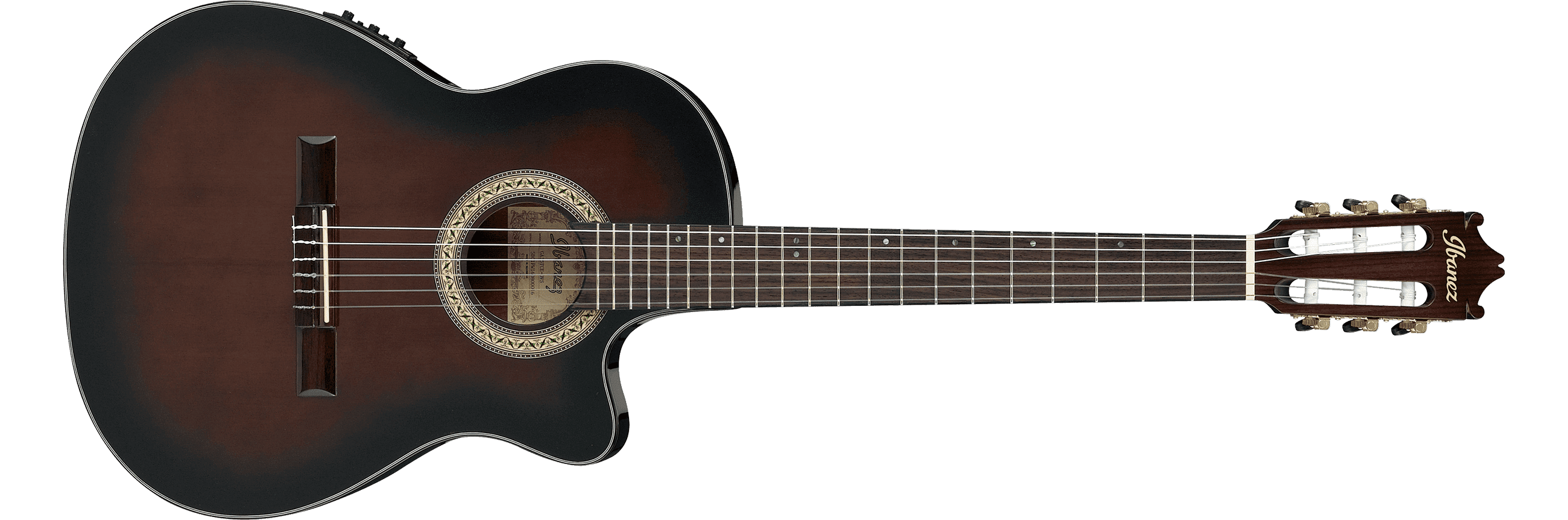

GA35TCE Dark Violin Sunburst High Gloss (more images) Red copyright sprite

The GA35TCE is a GA series classical acoustic/ electric guitar model introduced by Ibanez for 2013. It is made in China.

The GA35TCE features a thin classical body with a Venetian cutaway and a laminated spruce top with fan bracing on mahogany back and sides with a gloss finish. The soundhole is round with a classical mosaic decal rosette. It has a mahogany neck with a 21-fret rosewood fingerboard with offset abalone dot position markers. Components include an ivory plastic saddle in a rosewood bridge, a plastic nut, gold classical tuning machines and nylon strings. Electronics consist of an Ibanez under saddle pickup mated to an AEQ210T preamp with onboard tuner powered by a 9V battery, and balanced XLR and ¼" stereo outputs.

For 2018 the back and sides were replaced with sapele. For 2019 the mahogany neck was replaced with nyatoh and the rosewood fretboard and bridge were replaced with laurel. For 2020 the fretboard was changed to walnut.

The GA35CE is a similar model with a traditional body depth. The GA30TCE is a similar model with chrome hardware.

Specifications

Specifications for GA35TCE
Years: 2013–2020
Areas: Asia & Africa / Europe / North & South America and Oceania / USA
Made in: China
Finishes: Black Night High Gloss (BKN) 2013–2016 / Dark Violin Sunburst High Gloss (DVS)
Body
Body type:
Acoustic
Body shape:
Thin classical body w/ Venetian cutaway
Dimensions:
  Length: 489mm/ 19¼"
  Width: 375mm/ 14¾"
  Depth: 70mm/ 2¾" (60mm at neck joint)
Top:

  Material: Spruce (laminated)
  Bracing: Fan
  Finish: Gloss
  Binding: Black

Back/sides:

  Material: 2013–2017: Mahogany
                2018–2020: Sapele
  Finish: Gloss

Soundhole shape:
Round
Soundhole rosette:
Classical mosaic design water slide decal
Neck
Neck profile:
GA
Neck material:
2013–2018: 1-piece mahogany
2019–2020: 1-piece nyatoh
Neck finish:
Satin
Neck joint:
14th fret
Scale length:
650mm/ 25.6"
Fingerboard:
2013–2017: Rosewood
2018–2019: Laurel
2020: Walnut
Inlays:
Offset abalone dot
Frets:
21
Nut:
Ivory plastic (46mm)
Machine heads:
Ibanez classical
Electronics/ Components
Pickup:
Ibanez Under Saddle
Preamp:
Ibanez AEQ201T w/ onboard tuner
Output jack(s):
Balanced XLR & ¼" stereo
Battery:
9V
Bridge:
2013–2017: Rosewood
2018–2019: Laurel
2020: Walnut (11.6mm string spacing)
Saddle:
Ivory plastic (79.4mm)
Hardware color:
Gold
Strings (factory):
2013–2016: Nylon
2017–2020: .0280/.0322/.0403/.029/.035/.043 (Ibanez ICLS6NT clear nylon & silver plated)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

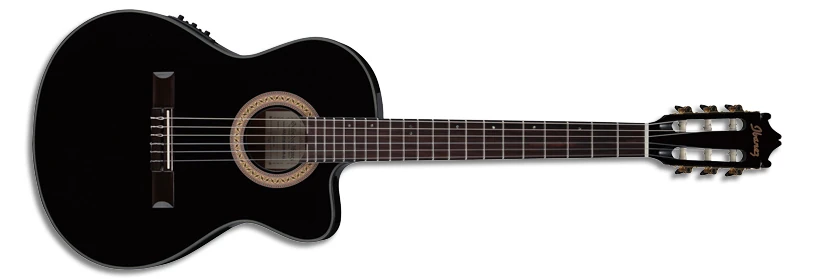

2016 GA35TCE BKN 3R 02
Black Night High Gloss

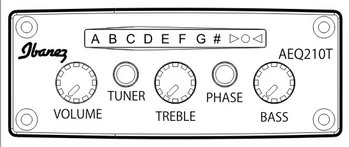

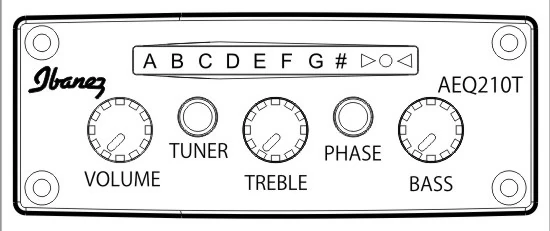

AEQ201T preamp controls diagram
AEQ201T preamp controls

Sources
