2017 GA35CE BKN 5B 01

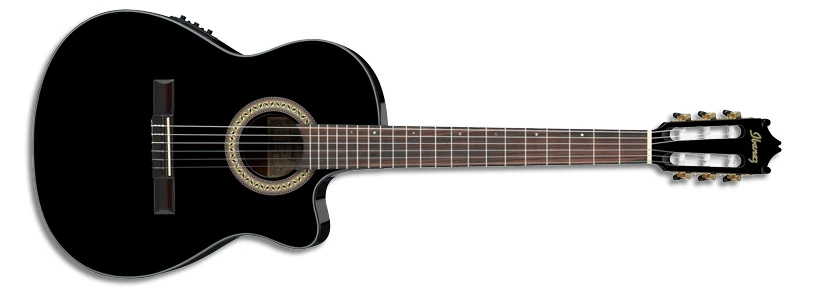

GA35CE Black Night High Gloss (more images) Red copyright sprite

The GA35CE is a GA series classical acoustic/ electric guitar model introduced by Ibanez for 2014. It is made in China.

The GA35CE features a classical body with a Venetian cutaway and a laminated spruce top with fan bracing on mahogany back and sides with a gloss finish. The soundhole is round with a classical mosaic decal rosette. It has a mahogany neck with a 21-fret rosewood fingerboard with offset abalone dot position markers. Components include an ivory plastic saddle in a rosewood bridge, a plastic nut, gold classical tuning machines and nylon strings. Electronics consist of an Ibanez under saddle pickup mated to an AEQ210T preamp with onboard tuner powered by a 9V battery, and balanced XLR and ¼" stereo outputs.

The GA35TCE is a similar model with a thinner body depth.

The GA35CE was discontinued after 2017.

Specifications

Specifications for GA35CE
Years: 2014–2017
Areas: USA
Made in: China
Finishes: Black Night High Gloss (BKN) 2016–2017 / Dark Violin Sunburst High Gloss (DVS) 2014–2015 / Natural High Gloss (NT) 2017
Body
Body type:
Acoustic
Body shape:
Classical body w/ Venetian cutaway
Dimensions:
  Length: 489mm/ 19¼"
  Width: 375mm/ 14¾"
  Depth: 102mm/ 4"
Top:

  Material: Spruce (laminated)
  Bracing: Fan
  Finish: Gloss
  Binding: Black

Back/sides:

  Material: Mahogany
  Finish: Gloss

Soundhole shape:
Round
Soundhole rosette:
Classical mosaic design water slide decal
Neck
Neck profile:
GA
Neck material:
Mahogany
Neck finish:
Satin
Neck joint:
14th fret
Scale length:
650mm/ 25.6"
Fingerboard:
Rosewood
Inlays:
Offset abalone dot
Frets:
21
Nut:
Ivory plastic (46mm)
Machine heads:
Ibanez classical
Electronics/ Components
Pickup:
Ibanez Under Saddle
Preamp:
Ibanez AEQ201T w/ onboard tuner
Output jack(s):
Balanced XLR & ¼" stereo
Battery:
9V
Bridge:
Rosewood (11.6mm string spacing)
Saddle:
Ivory plastic (79.4mm)
Hardware color:
Gold
Strings (factory):
2014–2016: Nylon
2017: .0280/.0322/.0403/.029/.035/.043 (Ibanez ICLS6NT nylon)

Images

Additional finishes/ details
2014 GA35CE DVS 3R 01

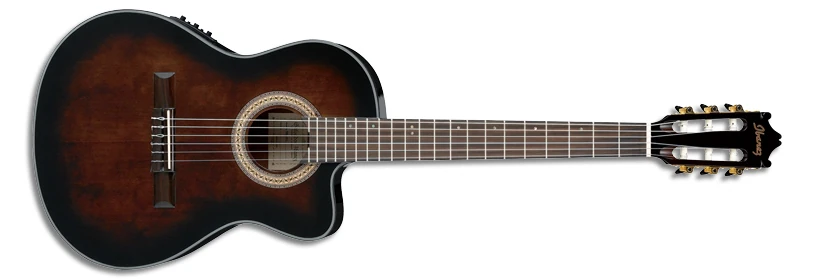

Dark Violin Sunburst High Gloss
Natural High Gloss
AEQ201T preamp controls diagram
AEQ201T preamp controls
Wimage An image for this article is missing!
An image of the GA35CE Natural High Gloss (NT) is wanted for this article. You can help by finding, uploading and adding it!
