2005 FWD60 TOR 12 01

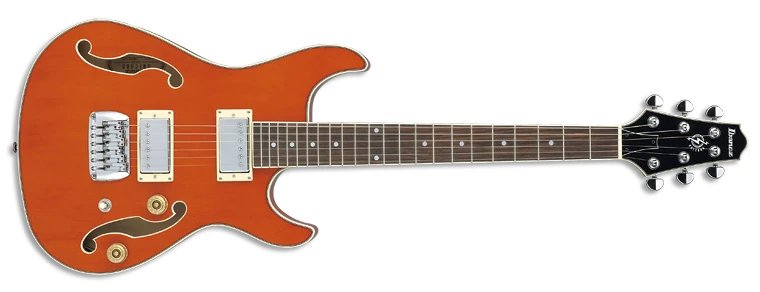

FWD60 Transparent Orange Red Red copyright sprite

The FWD60 is an Artcore series hollow body electric guitar model introduced by Ibanez for 2005. It was made in China.

The FWD60 has a flat top, double-cutaway, semi-hollow body design with a modern shape vaguely reminiscent of a Fender Stratocaster or some of Ibanez's Roadstar II series models from the 1980s. It features a laminated maple top with ƒ holes and ivory multi-binding on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with ivory binding and pearl dot position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers mounted in ivory pickup rings, a fixed bridge, a plastic nut, speed knobs, and Ibanez tuning machines with half moon buttons.

The AWD72 is a similar model with an arched top and different bridge.

This FWD60 was discontinued after 2006.

Specifications[]

Related content: FWD models | Artcore series | Models-icon
Specifications for FWD60
Year(s) offered: 2005–2006
Sold in: Asia & S. America / Europe / North America / USA
Made in: China
Finish(es): Transparent Orange Red (TOR)
Body
Body type:
Hollow body
Dimensions:
  Width: 330mm / 13"
  Depth: 44mm/ 1¾" (43mm at tail)
Top:
  Material: Maple (laminated)
  Binding: Ivory multi-ply
Back/sides:
  Material: Maple (laminated)
Neck joint:
Set-in
Bridge:
FXB50
Knob style:
Speed (gold)
Hardware color:
Chrome
Neck
Neck type:
Artcore FWD
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Pearl dot
Frets:
22 / large
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H) passive/ceramic
Neck pickup:
Ibanez ACH1 (H) passive/ceramic
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls VT3 toggle
Control layout
