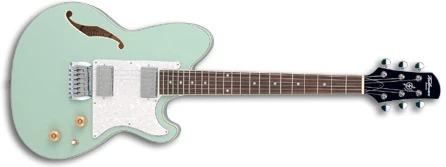

2004 FTM60 TQ 12 01
FTM60 Turquoise (more images) Red copyright sprite

The FTM60 is an Artcore series hollow body electric guitar model introduced by Ibanez in late 2003. It was made in China.

The FTM60 has a semi-hollow body with an off-set, single-cutaway shape inspired by the Talman series solid body guitars. It features an flat, laminated maple top with a single ƒ hole and ivory multi-binding on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with ivory binding and white dot position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers mounted in a white pearloid pickguard, an FXB50 fixed bridge, a plastic nut, gold speed knobs, and Ibanez tuning machines with half moon buttons.

The TXD71 is a related model with an arched top and no pickguard.

This FTM60 was discontinued after 2005.

Specifications

Specifications for FTM60
Year(s) produced: 2003–2005
Sold in: Asia & S. America / Europe
Made in: China
Finish(es): Metallic Red [?] (MR) 2004–2005 / Turquoise (TQ)
Body
Body type:
Hollow body
Dimensions:
  Depth: 44mm/ 1¾" (43mm at tail)
Top:

  Material: Maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Maple (laminated)

Neck joint:
Set-in
Bridge:
FXB50
Pickguard:
White pearloid
Knob style:
Speed (gold)
Hardware color:
Chrome
Neck
Neck type:
Artcore FTM
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H) passive/ceramic
Neck pickup:
Ibanez ACH1 (H) passive/ceramic
Controls:
Master volume / master tone / 3-way toggle
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

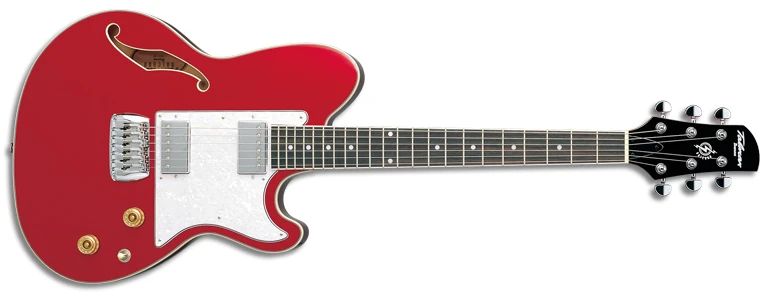

2004 FTM60 MR 12 01
Metallic Red (?)
HH 3-way toggle
Pickup switching
Controls VT3 toggle
Control layout
Wimage An image for this article is missing!
An image of the TXD71 Jewel Blue Top (JBT) is wanted for this article. You can help by finding, uploading and adding it!
