The FRM200 is a Fireman series solid body electric guitar model introduced by Ibanez for 2018. It was made in China and replaced the FRM150. The Fireman series is designed with guitarist Paul Gilbert as a signature model.

The FRM200 features a mahogany body bolted to a mahogany and maple neck with a 22-fret ebony fingerboard with binding and white dot position markers. Components include a Tight Tune hard-tail bridge and tailpiece, a TUSQ nut and a pair of custom DiMarzio PG-13 mini humbucking pickups.

For 2019 okoume replaced mahogany in the body and neck.

The FRM200 is sold in Japan packaged with a gig bag as the FRM200GB.

The FRM200 was discontinued after 2020. It was replaced in the lineup by the FRM300.

Specifications

Specifications for FRM200
Model name: FRM200 / FRM200GB
Year(s) produced: 2018–2020
Sold in: Worldwide
Made in: China
Finish(es): White Blonde (WHB)
Body
Body type:
Solid body
Body material:
2018: Mahogany
2019–2020: Okoume
Neck joint:
Set-in
Bridge:
Tight Tune fixed (10.4mm string spacing)
Tailpiece:
Tight Tune
Pickguard:
3-ply black/ white/ black
Knob style:
Plastic top hat (black w/ silver top)
Hardware color:
Chrome
Neck
Neck type:
FRM
Neck material:
2018: 3-piece mahogany/ maple
2019–2020: 3-piece okoume/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
White dot
Frets:
22 / narrow & tall
Nut:
Graph Tech Black TUSQ XL (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio PG-13 bridge (H) passive/ ceramic
Neck pickup:
DiMarzio PG-13 neck (H) passive/ ceramic
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted with oval bezel)
String gauge (factory):
.010–.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
Controls VT3 Fireman.png

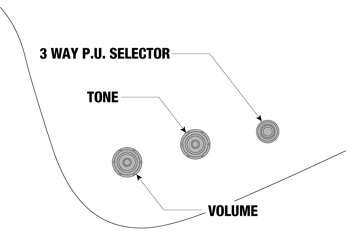

Control layout
HH 3-way toggle.png
Pickup switching diagram

Video

Paul Gilbert demos Ibanez FRM200
