2016 FR6UC BKF
FR6UCS Black Flat Red copyright sprite

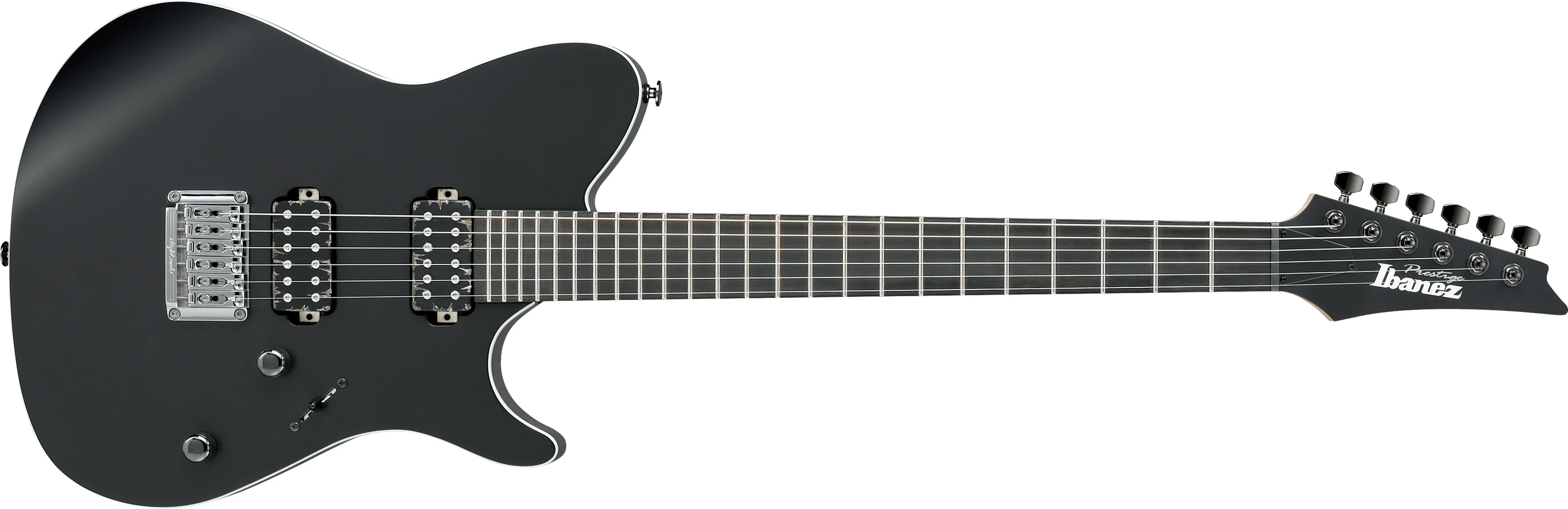

The FR6UCS is an FR series solid body electric guitar model introduced by Ibanez in 2016. It is one of the initial models in the high-end Prestige Uppercut line. It was sold in Japan as a spot model in 2016 before being offered in other markets starting in 2017.

The FR6UCS features a mahogany body bolted to a maple and walnut Wizard HP neck with an ebony fingerboard with 24 stainless steel frets, binding and no inlays. Components include a Graph Tech TUSQ nut, a pair of made-in-England Bare Knuckle Aftermath humbucking pickups, a Tight-End fixed bridge and Gotoh locking tuning machines.

For 2018 African mahogany replaced mahogany for the body.

The FR6UCS replaced the similar FR6UC which has nickel silver frets.

The FR6UCS was discontinued after 2019.

Specifications

Specifications for FR6UCS
Year(s) produced: 2016–2019
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Japan
Finish(es): Black Flat (BKF)
Body
Body type:
Solid body
Body material:
2016–2017: Mahogany
2018–2019: African mahogany
Neck joint:
AANJ
Bridge:
Tight-End fixed
Hardware color:
Cosmo black
Neck
Neck type:
Wizard HP Prestige
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony w/ binding
Frets:
24 / jumbo stainless steel (Prestige edge treatment)
Nut:
Graph Tech Black TUSQ XL
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Bare Knuckle Aftermath (H) passive/ ceramic
Neck pickup:
Bare Knuckle Aftermath (H) passive/ alnico
Controls:
Master volume / master tone / 5-way lever
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1D 2A 3F 4C 5G 6D (D std.)

Images

Additional details
HH 5-way split
Pickup switching diagram
Controls VT5
Control layout
