F302

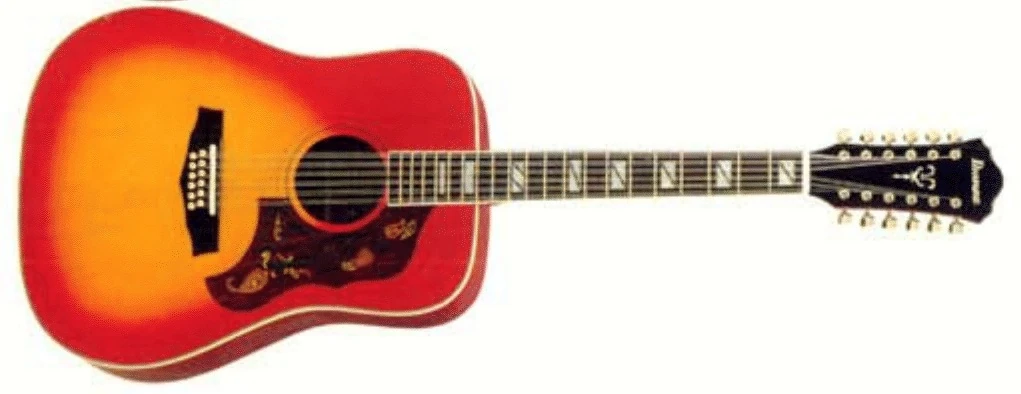

F302 Cherry Sunburst (more images)

The F302 is a 12-string Floral series acoustic guitar model introduced by Ibanez for 1978. It was hand-made in Japan.

The F302 features a dreadnought body with spruce top on mahogany back and sides. The round soundhole is trimmed with pearloid multi-line rosette and a tortoise pickguard. The mahogany neck with adjustable truss rod has a 20-fret rosewood fingerboard with pearl split block position markers and a rosewood headstock. Components include a Tru-Tune saddle on a rosewood bridge, a bone nut, and chrome covered machine heads.

The F300 is a similar six-string model.

The F302 was discontinued after 1982.

Specifications[]

Related content: Floral series |

Specifications for F302

Name: F302

Year(s) offered: 1978-1982

Sold in: Europe / USA

Made in: Japan

Price: MSRP: US$:330 "NT & BK finishes 1978" ; US$:300 "CS finish 1978" / US$:340 "CS & BK finishes 1979" ; US$:330 "NT finish 1979"

Finishes: Black (BK) / Cherry Sunburst (CS) 1978-1981 / Natural (NT) 1978-1979

Body

Body type:
Acoustic

Body shape:
Dreadnought

Dimensions:
  Body length: 19¾"
  Width: 16"
  Depth: 4½"

Top:
  Material: Spruce
  Finish: Natural gloss
  Binding: black and white

Back/sides:
Material: Mahogany
Finish: laminated

Soundhole shape:
Round

Soundhole rosette:
black and white multi-line

Neck

Neck profile:
hand-shaped

Neck material:
1-piece mahogany

Neck joint:
dovetail

Scale length:
648mm/ 25½"

Fingerboard:
Rosewood

Inlays:
Pearl split-blocks

Frets:
20 / medium

Nut:
Bone (43mm)

Machine heads:
chrome covered

Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Components

Bridge:
Rosewood

Bridge pins:
white w/ black dots

Saddle:
Tru-Tune (11mm string spacing)

Hardware color:
chrome

Pickguard:
fancy ornate

Images[]

Available finishes

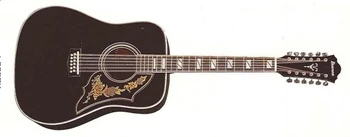

Black

Sources[]

An image for this article is missing!
An image of the F302 Natural (NT) is wanted for this article. You can help by finding, uploading and adding it!
