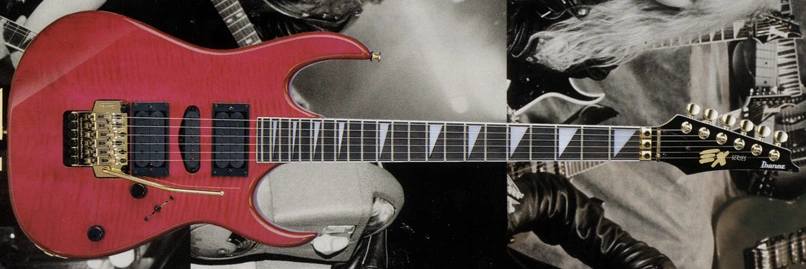

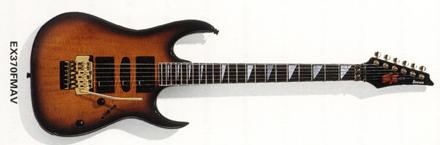

1992 EX370FM AV
EX370FM Antique Violin (more images) Red copyright sprite

The EX370FM is an EX series solid body electric guitar introduced by Ibanez in 1992. It was manufactured in Korea by Cort.

The EX370FM has a solid wood body with a flame maple top bolted to a one-piece maple neck with a 22-fret rosewood fingerboard with triangle position markers. Components include Ibanez pickups with humbuckers in the bridge and neck positions flanking a single coil, a double locking tremolo bridge and a locking nut. The humbuckers are mounted with pickup rings. The EX370FM has gold-tone hardware.

For the US market, the EX370FM's body is basswood; European EX370FMs are made of alder.

Early-1992 EX370FMs featured a traditional neck joint with a metal plate. Starting in mid-1992 it has the sculpted All-access neck joint which does away with the metal plate.

In 1993 US-spec EX370FMs got a new 24-fret neck.

The EX370 is a similar model without the flame maple top. The EX3700 is a similar model with a maple fretboard.

The EX370FM was discontinued after 1993 along with the rest of the EX line.


Specifications for EX370FM
Model name: EX370FM
Year(s) produced: 1992–1993
Sold in: Europe / USA
Made in: Korea
Finish(es): AV (Antique Violin) / CS (Cherry Sunburst) 1992 / TB (Transparent Blue) / TR (Transparent Red) / TP (Transparent Purple) 1993 / WB (Whiskey Brown) 1992
Body type:
Solid body
Body material:
US market: Basswood w/ flame maple top
European markets: Alder w/ flame maple top
Neck joint:
Early 1992: Bolt-on
1992–1993: AANJ
Lo-TRS tremolo
Hardware color:
Neck type:
1992, 1993 (EU): EX
1993 (USA): EX Pro
Neck material:
1-piece maple
Fingerboard material:
Fingerboard inlays:
1992, 1993 (EU): 22 / jumbo
1993 (USA): 24 / jumbo
Pickup configuration:
Bridge pickup:
Ibanez XH2 (H)
Middle pickup:
Ibanez XS3 (S)
Neck pickup:
Ibanez XH1 (H)
Master volume / master tone / 5-way lever


Other available finishes
Cherry Sunburst

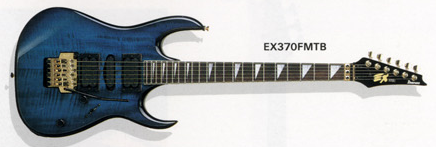

1992 EX370FM TB
Transparent Blue

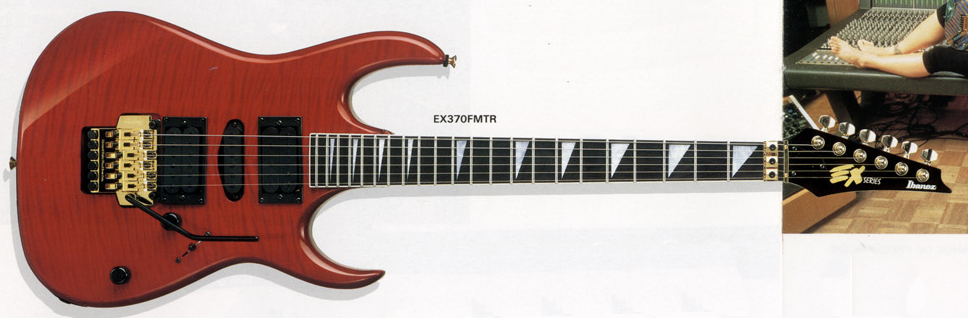

1992 EX370FM TR
Transparent Red
1993 EX370FM TP
Transparent Purple

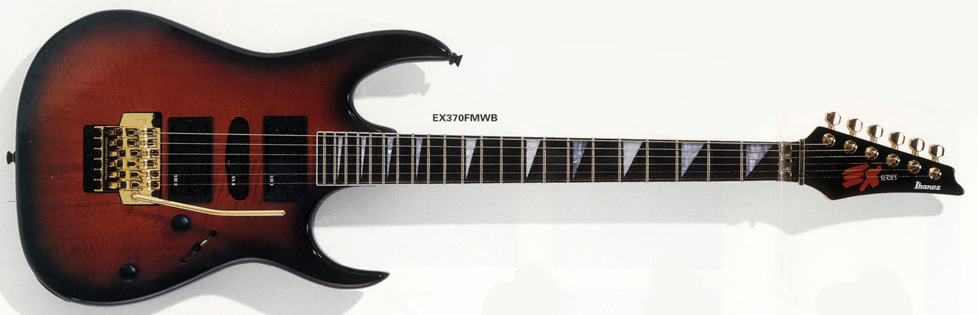

1992 EX370FM WB
Whiskey Brown
Wimage An image for this article is missing!
An image of the EX370FM in Cherry Sunburst (CS) is wanted for this article. You can help by finding, uploading and adding it!
