1992 EX3700 TT
EX3700 Transparent Turquoise (more images) Red copyright sprite

The EX3700 is an EX series solid body electric guitar introduced by Ibanez in 1992. It was manufactured in Korea by Cort. It was sold only in the United States.

The EX3700 has a basswood body with a flame maple top and cream binding bolted to a one-piece maple neck with a bound maple fingerboard with dot position markers. Components include Ibanez pickups with humbuckers in the bridge and neck positions flanking a single coil, a double locking tremolo bridge and a locking nut. The humbuckers are mounted with pickup rings. The EX3700 has gold-tone hardware.

1992 EX3700s have a 22-fret fingerboard, while 1993 versions have 24 frets.

The EX370FM is a similar model with a rosewood fretboard and without the binding.

The EX3700 was discontinued after 1993 along with the rest of the EX line.

Specifications[]

Related content: EX series | Models-icon
Specifications for EX3700
Model name: EX3700
Year(s) offered: 1992–1993
Sold in: USA
Made in: Korea
Finish(es): CS (Cherry Sunburst) / TP (Transparent Purple) / TR (Transparent Red) / TT (Transparent Turquoise)
Body
Body type:
Solid body
Body material:
Basswood w/ flame maple top & cream binding
Neck joint:
AANJ
Bridge:
Lo-TRS tremolo
Hardware color:
Gold
Neck
Neck type:
1992: EX
1993: EX Pro
Neck material:
1-piece maple
Fingerboard material:
Maple w/ binding
Fingerboard inlays:
Black dot
Frets:
1992: 22 / jumbo
1993: 24 / jumbo
Nut:
Locking
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez XH2 (H)
Middle pickup:
Ibanez XS3 (S)
Neck pickup:
Ibanez XH1 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Other available finishes
Cherry Sunburst

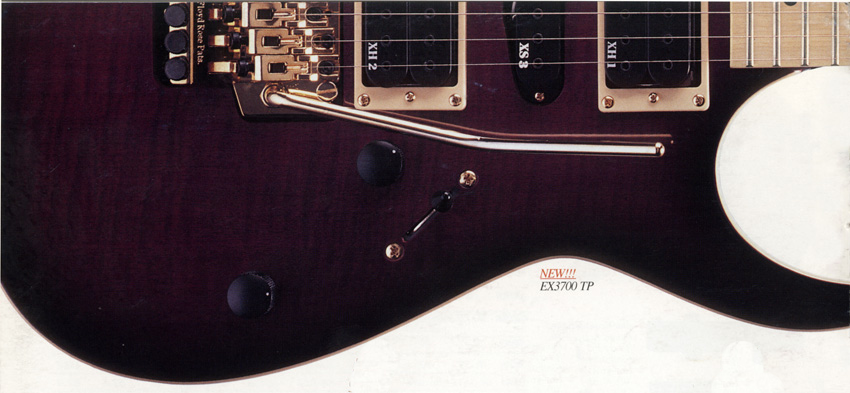

1992 EX3700 TP
Transparent Purple
Transparent Red
Wimage An image for this article is missing!
An image of the EX3700 Cherry Sunburst (CS) and Transparent Red (TR) is wanted for this article. You can help by finding, uploading and adding it!
