1992 EX370 JB
EX370 Jewel Blue (more images) Red copyright sprite

The EX370 is an EX series solid body electric guitar introduced by Ibanez in 1991. It was manufactured in Korea by Cort.

The EX370 has a solid wood body bolted to a one-piece maple neck with a 22-fret rosewood fingerboard with triangle position markers. Components include Ibanez pickups with humbuckers in the bridge and neck positions flanking a single coil, a double locking tremolo bridge and a locking nut. The humbuckers are mounted with pickup rings.

For the US market, the EX370's body is basswood; European EX370s are made of alder.

The EX370 featured a traditional neck joint with a metal plate through 1991. Starting in mid-1992 it has the sculpted All-access neck joint which does away with the metal plate. Also in 1992, the TRS-101 tremolo was replaced with a new lower-profile version.

In 1993 US-spec EX370s got a new 24-fret neck.

The EX370FM is a similar model with a flame maple top and gold hardware. The EX350 is a similar model with a pickguard. The EX360 is a related model with a single coil pickup replacing the humbucker in the neck position. The EX270 is a related model with a single-locking tremolo among other differences.

The EX370 was discontinued after 1993 along with the rest of the EX line.

Specifications

Specifications for EX370
Model name: EX370
Year(s) produced: 1991–1993
Sold in: Europe / USA
Made in: Korea
Finish(es): BK (Black) / BR (Burgundy Red) 1991–1992 / BRM (Burgundy Red Metallic) 1992–1993 / JB (Jewel Blue) / UV (Ultra Violet) 1992–1993 / WH (White) 1991–1992
Body
Body type:
Solid body
Body material:
US market: Basswood
European markets: Alder
Neck joint:
1991–1992: Bolt-on
1992–1993: AANJ
Bridge:
1991: TRS-101 tremolo
1992–1993: Lo-TRS tremolo
Hardware color:
Black
Neck
Neck type:
1991–1992, 1993 (EU): EX
1993 (USA): EX Pro
Neck material:
1-piece maple
Fingerboard material:
Rosewood
Fingerboard inlays:
Triangle
Frets:
1991–1992, 1993 (EU): 22 / jumbo
1993 (USA): 24 / jumbo
Nut:
Locking
Electronics
Pickup configuration:
HSH
Bridge pickup:
1991: Ibanez EX humbucking (H)
1992–1993: Ibanez XH2 (H)
Middle pickup:
1991: Ibanez EX single coil (H)
1992–1993: Ibanez XS3 (S)
Neck pickup:
1991: Ibanez EX humbucking (H)
1992–1993: Ibanez XH1 (H)
Controls:
Master volume / master tone / 5-way lever

Images

Other available finishes

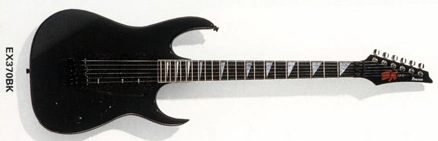

1992 EX370 BK
Black
Burgundy Red
Burgundy Red Metallic
1992 EX370 UV
Ultra Violet
White
Wimage An image for this article is missing!
An image of the EX370 in Burgundy Red (BR), Burgundy Red Metallic (BRM) and White (WH) is wanted for this article. You can help by finding, uploading and adding it!
