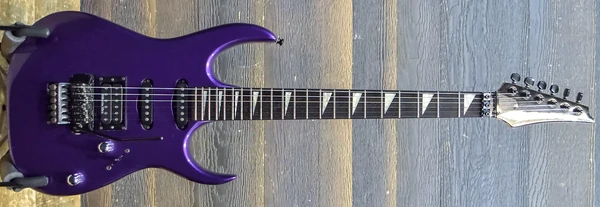

1990 EX360 PP
EX360 Purple Pearl (more images) Red copyright sprite

The EX360 is an EX series solid body electric guitar introduced by Ibanez in 1988. It was manufactured in South Korea by Cort.

The EX360 features a solid wood body bolted to a one-piece maple neck with a 22-fret rosewood fingerboard with triangle position markers. Components include Ibanez pickups with a humbucker in the bridge position and single coils at the neck and middle positions, a double locking tremolo bridge, and a locking nut.

For the US market, the EX360's body is basswood. Several different species of wood were used for EX360s sold in Europe.

The EX360 featured a traditional neck joint with a metal plate through 1991. Starting in 1992 they have the sculpted All-access neck joint which does away with the metal plate. Also in 1992, the TRS-101 tremolo was replaced with a new lower-profile version.

In 1993 US-spec EX360s got a new 24-fret neck.

The EX350 is a related model with a pickguard a humbucker in the neck position. The EX370 also has a neck humbucker, but no pickguard. The EX240 is a similar model with a single-locking tremolo.

The EX360 was discontinued after 1993 along with the rest of the EX line.

Specifications[]

Related content: EX series | Models-icon
Specifications for EX360
Model name: EX360
Year(s) offered: 1988–1993
Sold in: Europe / USA
Made in: South Korea
Finish(es): Black (BK) / Burgundy Red (BR) 1990–1991 / Dark Blue (DB) 1988 / Dark Gray (DG) 1992–1993 / Jewel Blue (JB) 1992–1993 / Lazer Blue (LB) 1991 / Marine Blue (MB) 1988–1989 / Purple Pearl (PP) 1990–1993 / Pearl Red (PR) 1988–1989 / White (WH) 1988–1992
Body
Body type:
Solid body
Body material:
US market: Basswood
European markets:
  1988–1990: Jelutong
  1991: Agathis
  1992–1993: Alder
Neck joint:
1988–1991: Bolt-on
1992–1993: AANJ
Bridge:
1988–1991: TRS-101 tremolo
1992–1993: Lo-TRS tremolo
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
1988–1992, 1993 (EU): EX
1993 (USA): EX Pro
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Triangle
Frets:
1988–1992, 1993 (EU): 22 / jumbo nickel silver
1993 (USA): 24 / jumbo nickel silver
Nut:
Locking
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
1988–1991: Ibanez EX humbucking (H)
1992–1993: Ibanez XH2 (H)
Middle pickup:
1988–1991: Ibanez EX single coil (S)
1992–1993: Ibanez XS2 (S)
Neck pickup:
1988–1991: Ibanez EX single coil (S)
1992–1993: Ibanez XS1 (S)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" mono (side mounted in oval plate)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other available finishes

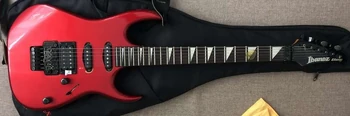

1990 EX360 BR
Burgundy Red

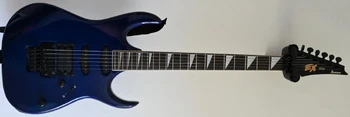

1988 EX360 DB
Dark Blue

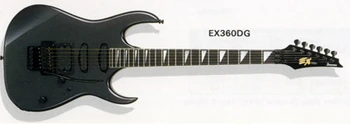

1992 EX360 DG
Dark Gray
EX360 JB
Jewel Blue
1989 EX360 MB
Marine Blue
EX360 PR
Pearl Red
Wimage An image for this article is missing!
An image of the EX360 in Black, Lazer Blue and White is wanted for this article. You can help by finding, uploading and adding it!
